Optimizing Polycarboxylate Superplasticizer Blending Technology: Key Techniques for Enhanced Concrete Performance

The optimization of Polycarboxylate Superplasticizer blending technology relies on combining specific macromonomer structures, modifying side-chain lengths, adjusting carboxyl-to-ether ratios, and incorporating functional cross-linking agents to deliver customized concrete rheology, extreme water reduction up to 40 percent, and long-term slump retention across harsh environmental conditions.

Table of Contents

1. Fundamental Molecular Mechanisms of Polycarboxylate Superplasticizer in Concrete Formulations

2. At a Glance: Core Blending Modules and Performance Summary

3. Key Techniques for Customizing Polycarboxylate Superplasticizer Blending Formulations

4. Synergistic Interactions with Secondary Chemical Admixtures and Retarders

5. Advanced Solutions for Extreme Workability and Self-Consolidating Concrete

6. Overcoming Slump Loss in High-Temperature and Hot-Weather Concreting

7. Industrial Quality Control and Field Optimization Guidelines for Admixture Blending

1. Fundamental Molecular Mechanisms of Polycarboxylate Superplasticizer in Concrete Formulations

A Polycarboxylate Superplasticizer achieves unmatched water reduction and dispersion stability in cementitious systems through a combination of electrostatic repulsion and steric hindrance generated by its comb-like copolymer backbone.

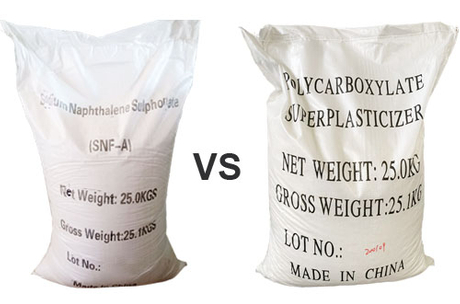

To fully optimize any Polycarboxylate Superplasticizer blending process, chemical engineers must analyze the underlying micro-level interaction between the comb-like copolymer molecules and hydrating cement grains. Unlike traditional naphthalene-based superplasticizers (PNS) or melamine-based dispersants (PMS) which rely primarily on electrostatic repulsion through surface charge neutralization, a modern Polycarboxylate Superplasticizer operates on a dual-action mechanism. The main carbon chain of the Polycarboxylate Superplasticizer contains anionic carboxylate groups (-COO⁻) that readily adsorb onto the positively charged surface of hydration products such as tricalcium aluminate (C3A) and early-phase calcium silicate hydrate (C-S-H) gels. This adsorption creates a negative surface potential that pushes cement particles apart through electrostatic repulsion.

However, the key driver of the exceptional water-reducing capacity of a Polycarboxylate Superplasticizer is the steric hindrance provided by its neutral polyethylene glycol (PEG) side chains. These hydrophilic side chains extend outwards into the aqueous phase between cement particles, creating a physical spatial barrier. When two cement particles approach each other, the compression of these extended Polycarboxylate Superplasticizer side chains reduces molecular entropy, resulting in a strong repulsive force that physically prevents particle agglomeration. This spatial separation releases trapped mixing water from within cement particle clusters, dramatically increasing initial slump and fluidity without requiring excess water addition.

Furthermore, the specific molecular architecture of a Polycarboxylate Superplasticizer can be engineered during synthesis by varying the monomer ratio, chain length, and molecular weight distribution. High-charge-density Polycarboxylate Superplasticizer polymers feature shorter side chains and higher carboxyl concentrations, delivering rapid initial adsorption and high initial water reduction up to 40%. Conversely, low-charge-density polymers feature longer polyether side chains that adsorb more slowly, offering sustained steric hindrance for extended slump retention. Understanding this dynamic equilibrium between electrostatic repulsion and steric hindrance is critical when selecting base liquor components for Polycarboxylate Superplasticizer blending formulations tailored to specific cement types and ambient temperatures.

Polycarboxylate Superplasticizer Molecular Insight: When designing a Polycarboxylate Superplasticizer blending matrix, European and Asian industrial clients frequently request customized carboxyl-to-ether ratios to balance initial flow against 120-minute slump retention. Increasing the side-chain density of the Polycarboxylate Superplasticizer extends workability retention but slightly lowers 12-hour compressive strength due to temporary retardation of early C3S hydration.

3. Key Techniques for Customizing Polycarboxylate Superplasticizer Blending Formulations

Customizing a Polycarboxylate Superplasticizer blending formulation requires blending high-water-reducing base polymers with targeted slump-retaining copolymers, stabilizing surfactants, and air-void refining agents.

In industrial application, single-component Polycarboxylate Superplasticizer products rarely meet the complex performance profiles demanded by modern commercial concrete production. Job sites routinely encounter changing ambient temperatures, varying haul distances, and fluctuating supplementary cementitious material (SCM) quality, such as fly ash and ground granulated blast-furnace slag (GGBS). Therefore, master admixture formulators rely on physical blending techniques that combine two or more distinct Polycarboxylate Superplasticizer base mother liquors (typically synthesized at 40% to 50% solid content) into a unified, high-stability liquid admixture.

The primary technique involves establishing an optimal ratio between a High-Water-Reducing Type (HWR) Polycarboxylate Superplasticizer mother liquor and a Slump-Retaining Type (SR) Polycarboxylate Superplasticizer mother liquor. The HWR component provides immediate wettability and rapid dispersion of cementitious grains upon mixing, achieving early initial flow. The SR component features slow-release ester bonds that gradually hydrolyze in the alkaline pore solution (pH > 12.5) of hydrating cement. As these ester linkages break down over 30 to 90 minutes, they progressively unleash fresh carboxylate anchoring groups and polyether side chains, continually replacing consumed dispersant molecules and maintaining concrete slump without causing initial flash retardation.

A second crucial technique involves managing the solid content and viscosity of the final Polycarboxylate Superplasticizer blend. High-concentration blends (20% to 30% active solids) are preferred for long-distance transport to minimize freight costs, whereas ready-to-use job-site formulations are diluted to 8% to 12% active solids to ensure high dosing precision in automated batch plant dispensers. During liquid-to-liquid blending, temperature control and pH neutralization (maintaining pH between 6.0 and 8.0 using sodium hydroxide or organic acids) are mandatory to prevent polymer degradation and preserve long-term shelf life.

Formulation Optimization Tip: Why do we design specific dual-mother-liquor blends? Field testing demonstrates that a 60:40 ratio of HWR to SR Polycarboxylate Superplasticizer achieves 32% water reduction while holding slump at 220mm for 90 minutes at 30°C. European customers particularly favor this balance because it eliminates the need for secondary re-dosing at job sites.

4. Synergistic Interactions with Secondary Chemical Admixtures and Retarders

A Polycarboxylate Superplasticizer must be formulated with compatible secondary retarders, defoamers, and viscosity modifying agents to prevent flash setting, bleed water accumulation, and air entrainment instability.

While the primary polymer structure of a Polycarboxylate Superplasticizer controls water reduction and steric dispersion, the commercial success of a concrete admixture blend depends heavily on its compatibility with secondary functional additives. Synthetic Polycarboxylate Superplasticizer polymers naturally entrain air during high-shear concrete mixing due to their surfactant-like amphiphilic molecular structure. Uncontrolled air entrainment can introduce large, unstable air voids (>500 microns) into the concrete matrix, severe degrading 28-day compressive strength by 5% for every additional 1% of entrapped air. To overcome this, chemical formulators must co-blend a high-efficiency defoamer directly into the liquid Polycarboxylate Superplasticizer blend.

Defoamers used in Polycarboxylate Superplasticizer blending are typically water-insoluble organosilicon compounds or polyether modified fatty alcohols. These low-surface-tension molecules destabilize the liquid film of large air bubbles formed during mixing, causing them to burst and exit the fresh concrete matrix. If specific freeze-thaw durability is required, a stable micro-air-entraining agent (AEA), such as sodium rosinate or synthetic alpha-olefin sulfonate, is added in combination with the defoamer. This "defoam-first, then entrain" technique replaces large strength-destroying air pockets with millions of micro-spacing air bubbles (<200 microns) that protect hardened concrete from freeze-thaw scaling.

In addition to air-void regulation, secondary retarders such as sodium gluconate, sugar alcohols (sorbitol, maltodextrin), or sodium tripolyphosphate (STPP) are routinely incorporated into Polycarboxylate Superplasticizer liquid blends. These small organic molecules chelate calcium ions (Ca²⁺) in the pore solution, temporarily delaying the nucleation and growth of calcium hydroxide and C-S-H crystals during early hydration. When properly proportioned, secondary retarders exhibit a synergistic performance boost when combined with Polycarboxylate Superplasticizer polymers, lowering the required dosage of active polymer while enhancing 3-hour workability retention in mass concrete placements.

Compatibility & Storage Maintenance: Defoamers blended into liquid Polycarboxylate Superplasticizer tend to float or phase-separate over prolonged storage due to density differences. Incorporating 0.05% to 0.1% emulsifying or thickening agents (such as xanthan gum) stabilizes the defoamer suspension within the liquid Polycarboxylate Superplasticizer blend for over 12 months.

5. Advanced Solutions for Extreme Workability and Self-Consolidating Concrete

Developing Self-Consolidating Concrete requires a dedicated Polycarboxylate Superplasticizer formulation that balances high initial flowability with ultra-low plastic viscosity to prevent aggregate segregation.

Self-Consolidating Concrete (SCC) represents one of the most demanding applications for modern chemical admixtures. SCC must flow effortlessly under its own weight, completely fill intricate formwork, and flow through dense reinforcement cages without mechanical vibration or structural segregation. Achieving this level of rheological control is impossible with traditional water reducers and requires a specialized Polycarboxylate Superplasticizer system optimized for extreme water reduction and precise yield stress management.

When engineering an SCC blend, formulators often face a classic trade-off: high dosages of standard Polycarboxylate Superplasticizer achieve high slump flow (>700 mm) but frequently cause "sticky" concrete with high plastic viscosity, making pumping difficult and causing surface bleed water. To overcome this technical bottleneck, modern admixture production incorporates advanced flake Polycarboxylate Superplasticizer water reducer for SCC dry-powder or high-purity liquid mother liquor technology. These specialized polymers feature hyper-branched molecular structures with optimized side-chain density that substantially reduce the plastic viscosity of the cement paste, permitting rapid flow rates and easy pumping.

Furthermore, the physical form of the Polycarboxylate Superplasticizer plays a critical role in specialized batching environments such as dry-mix mortar plants, precast concrete factories, and job sites with limited liquid storage infrastructure. Solid flake or spray-dried powder variants of Polycarboxylate Superplasticizer offer exceptional solubility, rapid hydration in low water-to-cement ratio mixes, and 100% active solid concentration, reducing international shipping costs and simplifying precise dry-blending operations.

Precast Industry Focus: European precast manufacturers heavily utilize high-purity flake Polycarboxylate Superplasticizer water reducer for SCC formulations because they allow water-to-cement ratios as low as 0.24 while accelerating 12-hour compressive strength development (>35 MPa), enabling double-turnover of expensive formwork molds within a single day.

6. Overcoming Slump Loss in High-Temperature and Hot-Weather Concreting

Hot-weather concreting requires specialized Polycarboxylate Superplasticizer formulations incorporating slow-release ester polymers to combat accelerated cement hydration and rapid slump loss.

Ambient temperatures exceeding 30°C pose severe challenges to concrete construction, including accelerated rates of cement hydration, rapid evaporation of mixing water, accelerated slump loss, shortened initial setting time, and increased risk of cold joint formation. Under high-temperature conditions, standard high-early-strength Polycarboxylate Superplasticizer polymers adsorb almost instantly onto cement grains, providing high initial flow but quickly losing dispersion capability within 30 to 45 minutes as hydration products rapidly encapsulate the polymer side chains.

To overcome hot-weather workability loss, chemical engineers rely on targeted molecular engineering and blending strategies. The primary mechanism involves incorporating a dedicated low release Polycarboxylate water reducer for hot weather into the master admixture blend. These specialized copolymers contain ester-functionalized macromonomers that remain non-adsorbing in neutral water but undergo controlled alkaline hydrolysis when introduced into the cement slurry. As ambient heat accelerates the initial consumption of superplasticizer molecules, these slow-release polymers continuously break down over 1 to 3 hours, steadily generating active carboxylic acid groups that bind to freshly exposed cement surfaces, thereby maintaining constant slump flow even under extreme ambient temperatures up to 45°C.

In addition to slow-release polymer technology, hot-weather Polycarboxylate Superplasticizer blending formulations integrate temperature-stable hydroxycarboxylic retarders, dosage-optimized gluconates, and evaporation retarders. This multi-layered defense strategy extends the open time of plastic concrete, lowers early hydration heat peaks, and prevents thermal cracking in mass concrete structures such as bridge piers, dam foundations, and high-rise raft slabs.

Hot-Weather Field Maintenance Tip: When using a low release Polycarboxylate water reducer for hot weather in summer concreting, field technicians must monitor the concrete temperature during batching. If concrete temperatures exceed 32°C, combining the slow-release Polycarboxylate Superplasticizer blend with chilled batch water or flake ice yields maximum slump stability over a 3-hour transport window.

7. Industrial Quality Control and Field Optimization Guidelines for Admixture Blending

A rigorous quality control protocol for Polycarboxylate Superplasticizer blending requires routine testing of solid content, pH, density, cement adaptability, and clay sensitivity.

Maintaining consistent quality across multi-ton industrial batches of Polycarboxylate Superplasticizer liquid blends requires strict operational oversight and rigorous laboratory testing. Small variations in raw mother liquor solid content, unreacted monomer concentrations, or batching water temperature can lead to significant job-site performance issues, including concrete flash setting, excessive air entrainment, or severe segregation.

The first critical QA/QC parameter is solid content verification using high-precision halogen moisture analyzers or oven-drying methods (105°C for 2 hours). Because the dosage of Polycarboxylate Superplasticizer in concrete mix designs is calculated on an active solid basis (typically 0.15% to 0.40% active solids by weight of cementitious material), any drift in mother liquor concentration directly impacts concrete workability. Density testing via digital hydrometers and pH measurement via calibrated probes are conducted on every batch to confirm chemical uniformity before tanker loading or drum filling.

A second major field challenge in Polycarboxylate Superplasticizer application is sensitivity to clay-bearing aggregates. Montmorillonite and illite clays present in unwashed sand or crushed stone absorb large quantities of Polycarboxylate Superplasticizer polyether side chains into their layered mineral structures, drastically reducing the amount of free plasticizer available to disperse cement grains. To resolve clay sensitivity during field blending, admixture formulators incorporate sacrificial clay-blocking agents (such as low-molecular-weight polyamines or cationic sacrificial polymers) into the Polycarboxylate Superplasticizer matrix. These sacrificial molecules preferentially bind to clay platelets, allowing the Polycarboxylate Superplasticizer polymer to remain in the aqueous phase and perform its primary water-reducing function efficiently.

Summary & Professional Recommendation: Optimizing Polycarboxylate Superplasticizer blending technology requires a complete understanding of polymer chemistry, secondary additive interactions, and field environmental conditions. By selecting the correct base polymers—such as high-purity flake Polycarboxylate Superplasticizer water reducer for SCC for high-flow self-consolidating applications or dedicated low release Polycarboxylate water reducer for hot weather formulations for high-temperature jobs—chemical formulators and concrete producers can achieve unparalleled workability, superior mechanical strength, and long-term concrete durability across any structural challenge.
