| Quantity: | |
|---|---|
| Parameter | Value |
|---|---|

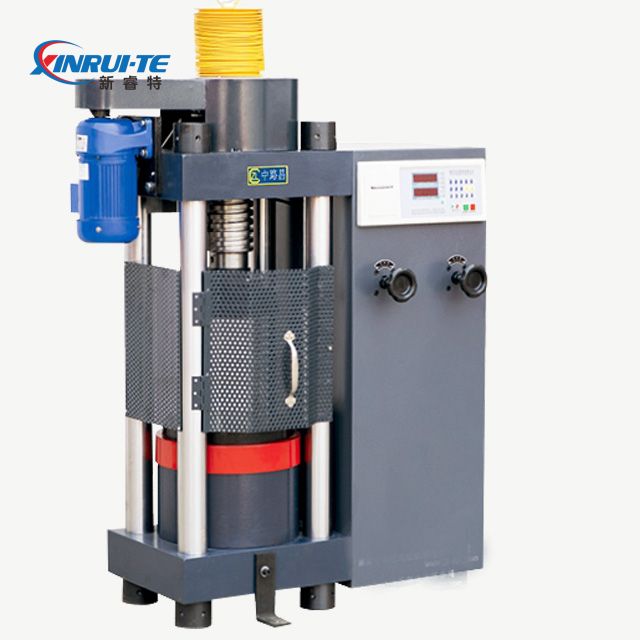

| Maximum Compression Force | 2000 kN |
| Measurement Range | 4%–100% FS |
| Force Display Accuracy | ≤ ±1% |
| Screw Adjustment Method | Manual |
| Top/Bottom Pressure Plate Dimensions | Φ225 mm / Φ300 mm (dual sizes) |
| Maximum Clearance Between Plates | 320 mm |
| Piston Stroke | 30 mm |
| Piston Diameter | Φ250 mm |
| Hydraulic Pump Rated Pressure | 40 MPa |
| Power Supply | Three-phase, 0.75 kW |
| Dimensions (L×W×H) | 800 × 500 × 1200 mm |
| Weight | 750 kg |
Compressive strength testing of concrete cubes, cylinders, and prisms.
Quality assurance for bricks, cementitious materials, and masonry units.
Research and development of new construction materials.
Meets international testing standards for compression testing (e.g., ASTM C39, EN 12390, GB/T 50081).
Calibration-ready for traceable results in accredited laboratories.
| Serial No. | Component | Manufacturer/Specification | Quantity |
|---|---|---|---|
| 1 | Compression Beam | Metal mold-cast, CNC precision-machined | 1 set |
| 2 | Motor | Made in China | 1 set |
| 3 | Columns | High-performance carbon structural steel, chrome-plated | 2 sets |
| 4 | Screw Assembly | Manual adjustment | 1 set |
| 5 | Load Sensor | High-precision strain gauge | 1 set |
| 6 | Control System | XLC intelligent measurement & control | 1 set |
| 7 | Digital Display Meter | XLC high-contrast LED display | 1 set |
| 8 | Accessories & Documentation | Operation manual, installation tools, calibration report | 1 set |
◆Confirm load capacity (most important)
Rule: The breaking force of test samples shall fall between 20% and 80% of the machine's range to ensure accurate data and a
longer service life.
Normal concrete C15–C50 → 2000kN (200Ton)
High-strength C60–C100 → 3000kN (300Ton)
UHPC → 4000–5000kN
Working range: 20%–80% of full capacity
◆Precision Grade
Class 0.5:High precision, for research & third-party labs (≤±0.5%)
Class 1:Standard QC, site labs (≤±1.0%)
◆Control Types: Manual / Digital Display / Full-auto Servo
Manual: Low cost, site use
Digital touch: Real-time display, peak hold, USB data
Servo automatic: Closed-loop control, constant stress rate, auto report
◆Main Frame Structure
4-column high stiffness frame
Hardened platens HRC≥55, self-aligning ball seat
Clear opening ≥320mm
