Modern concrete mix design demands a precarious balance. We must achieve the theoretical water-to-cement (w/c) ratio necessary for complete hydration. This ratio typically ranges from 0.22 to 0.25. At the same time, we must maintain enough plasticity for on-site placement and pumping. This presents a unique challenge. For structural engineers and procurement managers, selecting a concrete admixture is no longer just about basic fluidization. It requires evaluating specific chemical features and potential compatibility risks. You must weigh these factors against the project’s environmental and structural demands. This guide deconstructs the core features of these essential admixtures. We provide a verifiable framework for evaluating chemical types. You will understand implementation realities and long-term performance outcomes. The right selection elevates concrete durability. It ensures your mix behaves predictably from the batch plant to final curing.
Chemical specificities matter: The molecular structure of an admixture (e.g., the "comb-like" structure of Polycarboxylate Ethers) dictates its maximum water reduction rate (ranging from 5% to over 30%).
Implementation dictates performance: Application timing (e.g., delayed dosing) and aggregate quality (clay content) significantly alter the efficacy of any water reducer.
Standardization ensures compliance: Selection must map to localized standards (such as ASTM C494 Type A, F, or G) to ensure predictable setting times and minimal chloride content.
Every unit of water added beyond the strict hydration requirement serves a single purpose. It improves workability. However, this excess water subsequently increases porosity. It elevates permeability and compromises compressive strength. The baseline problem remains universal across all job sites. For context, increasing a w/c ratio from 0.4 to 0.7 can increase concrete permeability by over 100 times. Highly permeable concrete suffers terribly during freeze-thaw cycles. It also degrades quickly under chemical attacks from surrounding soil and water.
A high-quality water reducing agent functions directly through particle dispersion. Admixtures use either electrostatic repulsion or steric hindrance to manipulate particles at a microscopic level. They break up dense cement flocs efficiently. This chemical action releases trapped water back into the mix. You achieve crucial fluidization without adding excess moisture to the system.
This mechanism delivers specific outcome-focused features.
Achieving ultra-high compressive strengths. Engineers routinely use these admixtures for mixes designed to reach 22,000 psi in advanced structural applications.
Reducing total cementitious material requirements. Less cement lowers the thermal output during hydration. It reduces your overall carbon footprint and material costs.
Improving surface finish quality. Better dispersion eliminates honeycombing in complex formwork and heavily reinforced columns.
Detailing the primary chemical families helps buyers match compounds to specific structural requirements. Each chemical base offers unique physical behaviors and economic advantages.
Sodium lignosulfonate derives primarily from wood pulp. It exists as a highly refined byproduct of the paper industry. This first-generation admixture typically yields a 5% to 12% water reduction.
It remains highly cost-effective for standard concrete applications. You will notice beneficial secondary features during use. It offers mild retarding effects, which helps extensively during warm weather pours. It also provides slight air-entrainment. These microscopic air bubbles improve freeze-thaw durability naturally. The typical dosage ranges between 0.2% and 0.3% by weight of cementitious materials.
Manufacturers synthesize SNF from coal-tar derivatives. This second-generation chemical offers much higher reduction rates. Expect a 10% to 20% reduction capacity. It achieves this fluidity without causing excessive retardation in the setting phase.
We see SNF used most frequently in standard high-strength concrete. It becomes essential where early strength development is prioritized. Fast early strength allows construction crews to remove formwork rapidly. This speeds up the overall project timeline and improves contractor efficiency.
Engineers designed PCE admixtures utilizing a distinct "comb-like" molecular structure. The main molecular chain contains free carboxylic groups. Meanwhile, polyoxyethylene side chains extend outward from this spine. This steric hindrance mechanism achieves severe water reduction. Rates typically fall between 25% and 40%.
PCE represents the ultimate water reducer for complex pours. You should specify it for precast concrete and self-compacting concrete (SCC). It performs flawlessly in scenarios requiring an ultra-low w/c ratio, usually between 0.3 and 0.4. The typical active solid dosage remains extremely low. You only need 0.15% to 0.25% to see dramatic fluidity improvements.
Comparison Chart of Admixture Categories | ||||
Chemical Generation | Primary Base Material | Reduction Capacity | Primary Mechanism | Best Use Case |
|---|---|---|---|---|
First-Generation | Wood Pulp (Lignin) | 5% - 12% | Electrostatic Repulsion | Standard concrete, mild retarding |
Second-Generation | Coal-tar (SNF) | 10% - 20% | Electrostatic Repulsion | High-strength, early form removal |
High-Performance | Polymers (PCE) | 25% - 40% | Steric Hindrance | SCC, precast, ultra-low w/c ratios |
Bridging the gap between a specification sheet and on-site realities requires careful technical evaluation. You must align chemical behaviors with environmental variables.
High-range admixtures face significant challenges regarding slump retention versus rapid slump loss. You must evaluate their ability to maintain workability over extended transit times. Concrete trucks often sit in traffic. Hot and humid climates accelerate hydration prematurely. A high-quality formulation preserves the slump for over 90 minutes without requiring dangerous on-site retempering.
Bleeding and segregation control represent another critical evaluation metric. Certain additives, like pure Hydroxycarboxylic acids, risk inducing rapid bleeding. Water separates and rises to the slab surface quickly. A premium Water Reducing Agent actively lowers this bleeding rate. It binds the matrix together while maintaining essential plasticity. The aggregates remain suspended evenly throughout the formwork.
For mass concrete pours, hydration heat peak management dictates structural safety. Massive foundations generate intense internal heat. Evaluating the admixture's ability to delay the peak time of heat emission is absolutely critical. Delaying this peak prevents severe thermal cracking across thick concrete sections.
Finally, environmental and chemical safety safeguards your long-term investment. You must verify low chloride and alkali content before approval. High chlorides break down the protective passivation layer around rebar. This induces rapid reinforcing steel corrosion. Always insist on comprehensive testing data regarding exact chloride limits.
Addressing the friction points of adoption builds engineering trust. Even perfect chemicals fail under poor implementation routines.
Dispenser timing and mixing protocols dictate success heavily. Adding the admixture at the wrong time neutralizes its best features entirely. Industry best practices suggest a delayed addition methodology. You should add the agent 1 to 5 minutes after initial water-cement mixing. Dry cement particles initially absorb vast amounts of water. Waiting allows the chemical to target the remaining flocs directly. This prevents excessive retardation and maximizes plasticizing effects.
The "clay content" variable frequently ruins batch consistency. High clay content in fine aggregates acts like a microscopic sponge. Clay particles actively adsorb PCE-based admixtures aggressively. They steal the chemical before it interacts with cement grains. Buyers must rigorously test aggregate quality using Methylene Blue testing. You must factor local clay levels into your baseline dosage calculations.
Overdosing carries severe consequences. We must transparently address the risks of exceeding recommended dosages on site.
Severe Segregation: Heavy aggregates sink rapidly to the bottom of the formwork, destroying structural uniformity.
Surface Crusting: The top layer dries and cracks while the interior remains dangerously liquid.
Excessive Retardation: The concrete fails to set for days, halting entire construction schedules and wasting labor.
Compromised Early Strength: Structural integrity remains highly vulnerable during crucial early curing phases.
Guiding the final purchasing decision requires looking beyond basic product brochures. You must base decisions on logistics, standardized codes, and rigorous pilot testing.
Evaluating the physical form impacts logistics directly. You must choose between liquid dispersions and dry powders. Powdered PCE formulations often exceed 95% solid content. They remain fully water-soluble upon mixing at the batch plant. High-solid powders reduce transportation and storage footprints massively. They eliminate the need to ship heavy water across long distances. They also resist freezing completely during harsh winter storage.
Regulatory and standard alignment protects your legal liability. Shortlist products based on strict compliance with localized building codes. You must map the product to established industry standards. Match the product to ASTM C494 Type A for standard reduction requirements. Specify Type F or G for high-range and retarding superplasticizers. This certification ensures predictable setting times universally.
Lab-scale mix trials remain a non-negotiable step before bulk procurement. Standardized data never perfectly matches localized raw materials. You conduct pilot testing primarily to verify cement-admixture compatibility.
Follow this standardized testing sequence for local mixes:

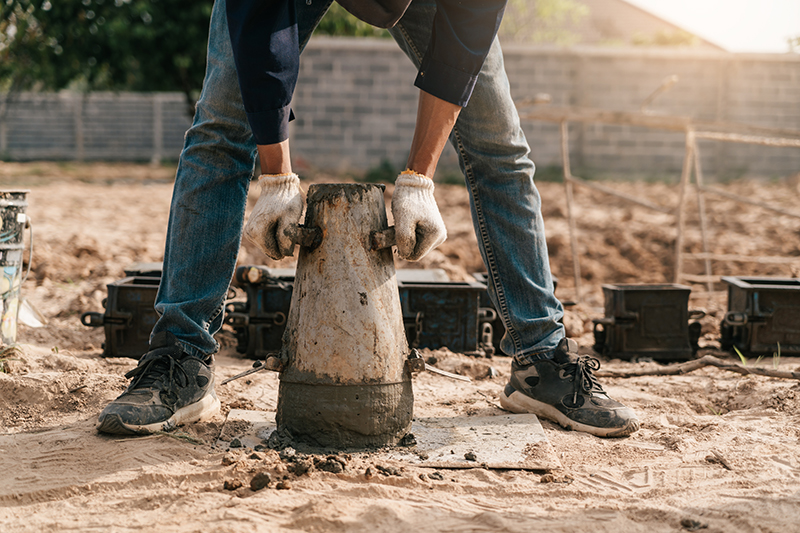

Baseline Slump Test: Establish the initial slump using local cement and aggregates without any additives.
Dosage Calibration: Introduce the admixture at the minimum recommended solid content level to gauge initial reactivity.
Retention Monitoring: Measure slump flow every 30 minutes to track workability loss over time accurately.
Compressive Verification: Cast sample cylinders to verify 7-day and 28-day strength curves match your structural requirements.
The optimal admixture is not universally the one offering the highest reduction percentage. The best choice carefully balances strict w/c ratio limits, regional aggregate properties, and practical logistical constraints. Understanding the underlying molecular mechanisms empowers better mix designs. You can prevent rapid slump loss, mitigate thermal cracking, and ensure homogeneous placement effortlessly.
We encourage technical buyers to take an evidence-based approach. Request physical product samples and comprehensive Safety Data Sheets from your short-listed suppliers. Demand specific trial-mix data tailored to your exact cement type and aggregate profile. This proactive verification eliminates on-site guesswork and guarantees long-term structural performance.
A: The dosage depends entirely on the solid content and chemical base. It typically ranges from 0.15% to over 2.0% of the total cement weight. High-performance polymers require strict calibration. You must perform local trial mixes to establish the optimal baseline and prevent dangerous overdosing.
A: Industry categorization relies on total reduction capacity. Standard formulations achieve less than 10% water reduction. Mid-range products achieve 10% to 15%. Superplasticizers, known as high-range reducers, achieve greater than 20% reduction. They provide extreme fluidity for complex pours without adding excess water.
A: Yes. By facilitating much lower w/c ratios, they drastically reduce the porosity of the cured matrix. A denser, less permeable matrix elevates the concrete's natural resistance. It defends against harsh chemical attacks, moisture ingress, and destructive freeze-thaw cycles.
A: Rapid slump loss stems from several common variables. High clay content in your fine aggregates actively absorbs the chemical prematurely. Poor compatibility between your specific cement brand and the admixture also neutralizes plasticization. Furthermore, high ambient temperatures accelerate hydration, which rapidly destroys workability before placement finishes.
Xinrui-Te has been tracking the latest development of international water reducing agent ,especially polycarboxylate water reducing agent. Has systematically studied various aspects such as raw material selection, molecular structure design, action mechanism, synthetic production process, cost reduction, and performance improvement of polycarboxylic acid-based water reducing agents. In development, synthesis, and production, Based on the matrix of polycarboxylic acid-based superplasticizers with different performance series, after years of development, the synthesis technology has made great progress.
(1)High water-reducing ester polycarboxylic acid water-reducing agent product adopts MPEG and methacrylate esterification and aqueous solution copolymerization technology. It has small fluctuations in performance and quality and has relatively good adaptability to different cements. The water-cement ratio makes it easier to exert its low viscosity and good slump retention performance. The slump of fresh concrete is more than 200mm, and the concrete loss over time is less than 50mm in 1 hour, which is at the leading level of similar products.
(2) The standard ether polycarboxylic acid water-reducing agent adopts APEG and acrylic acid aqueous solution copolymerization technology, which integrates high water reduction, high dispersion retention, simple process, environmentally friendly production, and stable quality.
(3) High slump retention polycarboxylic acid-based water reducing agent adopts TPEG, acrylic acid, AMPS and other aqueous solution copolymerization technology.
(4)Through the compounding of polycarboxylic acid-based water-reducing agent masterbatch with different properties, various polycarboxylic acid-based admixture products are available to end customers at a concentration of 10 to 20%, with a water reduction rate of more than 30%, using polycarboxylic acid-based pumping agents. The prepared concrete will not segregate, bleed, or slump within 1 to 2 hours, and has excellent performance.
