The concrete reinforcement industry is undergoing a massive shift. Engineers and contractors are rapidly moving away from labor-intensive traditional steel like rebar and wire mesh. Advanced engineered polymers now offer a smarter, highly efficient alternative for modern builds.
Concrete naturally cracks under stress. It requires robust internal reinforcement to ensure long-term durability. Traditional steel methods often introduce severe handling challenges, placement errors, and devastating corrosion risks over time. Finding a reinforcement solution to mitigate these risks while maintaining structural integrity remains crucial for any ready-mix producer or project manager.
This guide explores what macro synthetic fiber is and how it functions as a formidable alternative to secondary steel. You will learn the critical differences between macro and micro fibers regarding structural capabilities. We will also outline the exact evaluation criteria you need to successfully transition your concrete mix designs.

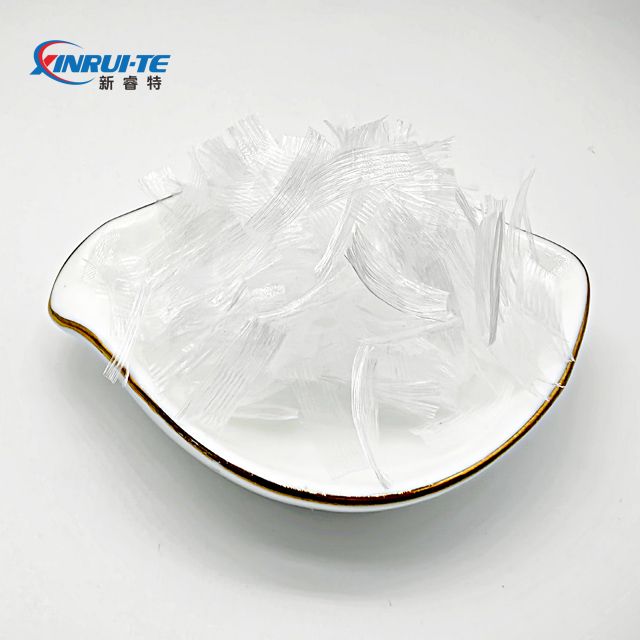

Macro synthetic fibers are high-performance engineered polymers (typically PP or HDPE) with precise physical dimensions (length >38mm, diameter >0.30mm) designed to provide 3D structural reinforcement.
Unlike micro fibers that only prevent early plastic shrinkage, macro fibers deliver significant post-crack load-bearing capacity and residual strength.
Adoption eliminates the handling, placement, and corrosion risks of traditional wire mesh, reducing total cost of ownership (TCO) and accelerating construction schedules.
Validating performance requires specific adherence to industry standards like ASTM C1116 and EN 14889-2, ensuring equivalent performance to steel based on yield line theory.
Macro synthetic fibers serve as discrete, non-metallic reinforcement elements. Batch plants distribute them uniformly throughout a concrete matrix during the mixing phase. This creates a multi-directional internal network. Unlike traditional steel grids placed horizontally, these polymers provide true three-dimensional (3D) strengthening. They intercept micro-cracks before they propagate to the surface.
The chemistry behind these solutions dictates their performance on the job site. Most structural fibers in this category utilize high-density polyethylene (HDPE). Alternatively, manufacturers engineer them from a high-tensile polypropylene blend. Industry professionals frequently source a specialized PP Macro Fiber to achieve superior tensile strength. These non-metallic polymers absolutely refuse to rust. This makes them highly suitable for aggressive chemical environments or coastal projects.
To classify a fiber as "macro," it must meet strict physical parameters. Engineers do not guess these dimensions; they adhere to international standards. Length typically ranges between 35mm and 65mm (1.5 to 2.5 inches). The diameter must exceed 0.30mm (0.012 inches). These specific boundaries separate structural elements from mere cosmetic additives. The high length-to-diameter ratio ensures the elements bridge wider cracks effectively.

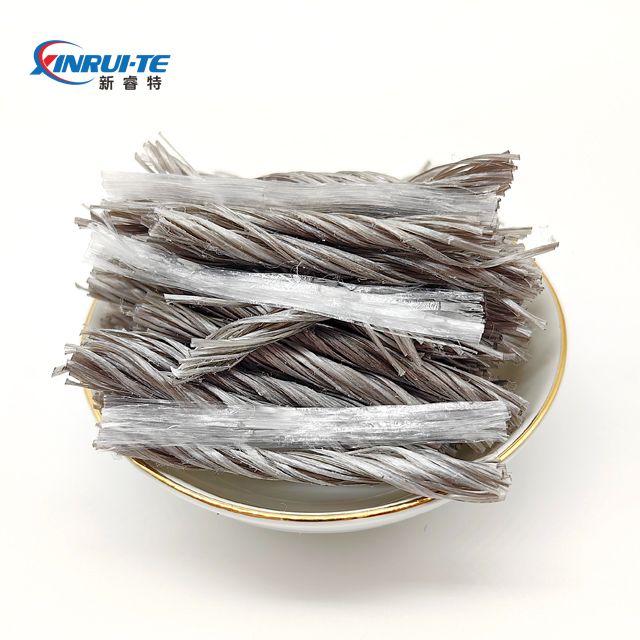

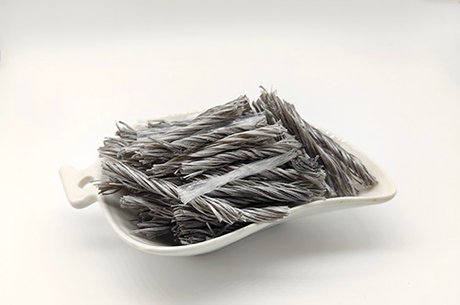

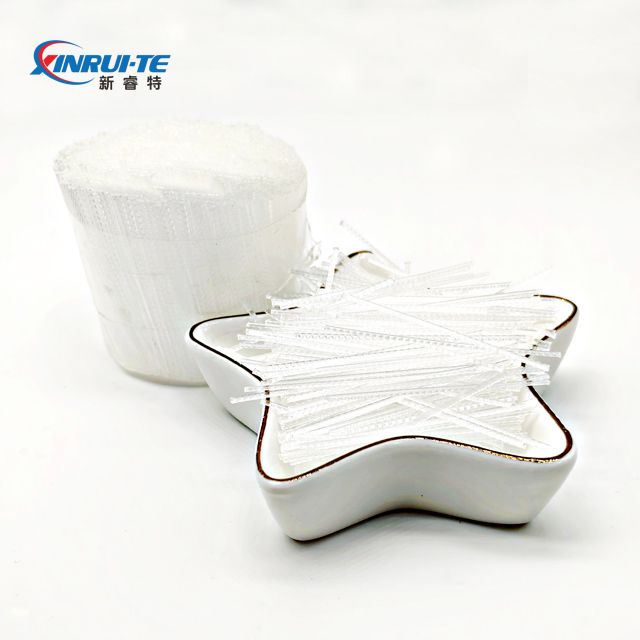

You cannot rely on smooth plastic strands for structural hold. Macro synthetic fibers feature highly engineered surface geometries. They utilize unique embossed textures. Some feature continuously deformed or crimped profiles along their entire length. These specialized shapes optimize mechanical anchoring within the concrete matrix. Once the concrete hardens around them, they lock firmly into place. This prevents the fibers from pulling out under extreme flexural stress.
Industry professionals often confuse synthetic fiber categories. You must strictly divide them based on their functional timeline during the concrete curing process. Using the wrong fiber at the wrong time leads to catastrophic slab failure. Micro fibers act during the early plastic state. Macro fibers perform heavily in the hardened state.
Micro fibers serve a specific, highly limited purpose. They measure under 1.5 inches in length and under 0.012 inches in diameter. They effectively mitigate early-age plastic shrinkage. They act as microscopic nets holding wet concrete together during the first 24 hours. They also provide excellent passive fire protection. In high heat, they melt to create tiny pressure-release channels, preventing explosive spalling. However, they offer zero post-crack residual strength. Once the concrete fully cures, they cannot carry structural loads.
Macro fibers carry a distinct structural mandate. They bridge cracks long after the concrete completely hardens. They provide high residual strength to the structural element. Replacing macro fibers with micro fibers creates severe structural deficiencies. You would need significantly thicker concrete slabs to compensate for the lost load-bearing capacity. Never substitute a structural macro polymer for a micro shrinkage additive.
Comparison Chart: Micro vs. Macro Capabilities
Feature | Micro Synthetic Fibers | Macro Synthetic Fibers |
|---|---|---|
Primary Function | Mitigate early plastic shrinkage | Provide structural load-bearing capacity |
Length Range | Less than 1.5 inches (38mm) | 1.5 to 2.5 inches (38mm - 65mm) |
Post-Crack Strength | Zero structural contribution | High residual flexural strength |
Fire Protection | Excellent (prevents spalling) | Limited primary role |
Application Phase | First 24 hours (Plastic phase) | Lifetime (Hardened phase) |
Welded wire fabric (WWF) carries inherent flaws. It only acts as secondary reinforcement after a crack actually occurs. It does not prevent cracking. Furthermore, site workers frequently misplace it. They trample the steel mesh to the bottom of the slab during concrete placement. When steel rests at the subgrade, it provides absolutely no mid-depth reinforcement. It also demands high labor requirements for cutting, tying, and positioning.
Transitioning to Macro Synthetic Fibers solves these issues directly. Because they mix evenly throughout the volume, they deliver optimal flexural strength from top to bottom. They increase fatigue life significantly under dynamic wheel loads. They also provide superior impact resistance. They achieve this by distributing stress evenly across millions of tiny intersections before a visible crack ever forms.
The site-level benefits transform construction schedules. Implementing 3D polymer reinforcement streamlines the entire pouring operation.
Eliminating Tripping Hazards: Workers walk freely without navigating dangerous steel grids.
Direct Subgrade Access: Concrete mixer trucks can drive directly into the pouring zone without crushing reinforcement mats.
Reducing Placement Time: Crews skip the entire steel-tying phase, allowing pours to finish hours earlier.
Preventing Corrosion Bleed: Non-metallic elements never rust, eliminating surface spalling over time.
Shotcrete applications see massive operational advantages. Spraying concrete onto vertical or overhead surfaces requires sticky, cohesive material. Replacing traditional steel fibers with polymers improves adhesion dramatically. Steel fibers often bounce off hard surfaces. Polymer fibers reduce material rebound rates from roughly 25% down to under 5%. This prevents enormous material waste and allows for thicker single-pass applications.
You must evaluate products using a strict technical framework. Move beyond mere marketing claims. Demand verifiable engineering data from manufacturers. High-performance reinforcement requires rigorous laboratory validation to ensure human safety and structural integrity.
High-quality products meet specific baseline mechanical expectations. A premium Macro Synthetic Fibre should display exceptional strength characteristics. Look for a tensile strength reaching approximately 600 MPa. The elastic modulus should approach or exceed 10 GPa. These figures guarantee the material can absorb heavy kinetic energy without snapping.
Engineers rely on established global standards to verify material quality. Do not specify uncertified additives.
ASTM C1116: Standard Specification for Fiber-Reinforced Concrete. You must specifically demand Type III (Synthetic Fiber-Reinforced Concrete) compliance.
EN 14889-2 (Class II): The rigorous European standard. It requires manufacturers to prove specific residual flexural strength at designated structural deflections.
ASTM C1609: The test method used to evaluate flexural performance. It measures toughness and residual strength using a third-point loading beam test.
Structural dosing never involves arbitrary guesswork. Standard dosing ranges broadly from 3.0 to 15 lbs/yd³ depending on the application. Engineers calculate this exact requirement using tensile strength conversions and bending moments. They rely heavily on yield line theory to validate the design. Yield line theory predicts crack patterns in concrete slabs. By calculating the energy absorbed across these future lines, engineers mathematically prove the synthetic dosage serves as a verifiable equivalent to steel reinforcement.
Standard Dosing Reference Table
Application Type | Typical Dosing Range (lbs/yd³) | Target Metric |
|---|---|---|
Light Commercial Slabs | 3.0 - 5.0 | Crack width control, moderate fatigue life |
Heavy Industrial Floors | 5.0 - 8.0 | High point-load resistance, impact toughness |
Shotcrete (Mining/Tunnels) | 8.0 - 15.0 | Maximum residual strength, rock support |
Precast Elements | 4.0 - 7.0 | Stripping strength, transit durability |
Contractors naturally worry about long elements clumping together during the mixing cycle. The industry refers to this as the "balling" risk. Modern engineering provides a highly effective solution. Premium manufacturers supply fibers packed in water-soluble wrapped pucks or collated bundles. Workers toss these pucks directly into the truck. The wrappers dissolve completely in the alkaline moisture. The fibers then disperse evenly only after entering the aggressive mixing action. Always ensure trucks spin at high mixing speeds for at least four to five minutes post-addition.
Suspension myths persist on many job sites. Some project managers worry the elements will sink to the bottom or float to the top during placement. Physics easily disproves this concern. Concrete possesses a specific gravity greater than 2.0. It also features a naturally high viscosity. Properly dosed polymers match this internal friction. They remain uniformly suspended and perfectly distributed in a 3D matrix. You will not see an empty subgrade or a hairy surface if you follow proper dosing guidelines.
Surface finishing requires minor operational adjustments. Trowel operators should keep their blades flat initially to push elements just below the paste line. Joint creation requires precise timing. Follow these operational guidelines for saw cutting slabs:
Perform standard wet cuts exactly at 1/4 of the total slab thickness.
Do not wait too long; cut as soon as the concrete supports the equipment without raveling.
Extend the cut depth to 1/3 of the slab thickness for highly dosed slabs or exceptionally thick profiles.
Use high-quality diamond blades to shear cleanly through both paste and polymer without pulling the fibers out.
Macro synthetic fibers represent far more than a simple concrete additive. They serve as a legitimate, engineered structural alternative to traditional secondary steel reinforcement. They eliminate the placement errors of wire mesh while providing superior 3D crack control. They fundamentally upgrade fatigue life, impact resistance, and site safety.
Successful implementation relies entirely on rigorous evaluation. You must verify exact physical dimensions. Demand verifiable ASTM and EN compliance data from your suppliers. Most importantly, collaborate with qualified structural engineers to calculate accurate dosing equivalents based on yield line theory.
Take action on your next build. Encourage your specifiers and structural engineers to request detailed residual strength test reports (such as ASTM C1609) when shortlisting manufacturers. Transitioning to advanced polymers guarantees a safer job site and a significantly more durable final structure.
A: They can replace temperature/shrinkage steel and secondary reinforcement (like wire mesh) in slabs-on-grade, shotcrete, and precast applications. However, they do not replace primary structural rebar in suspended slabs, heavy load columns, or structural bridge beams.
A: No. Being 100% non-metallic polymers, they are completely resistant to chloride-induced corrosion. This chemical stability makes them ideal for coastal marine structures, aggressive chemical processing plants, and concrete exposed to heavy de-icing salts.

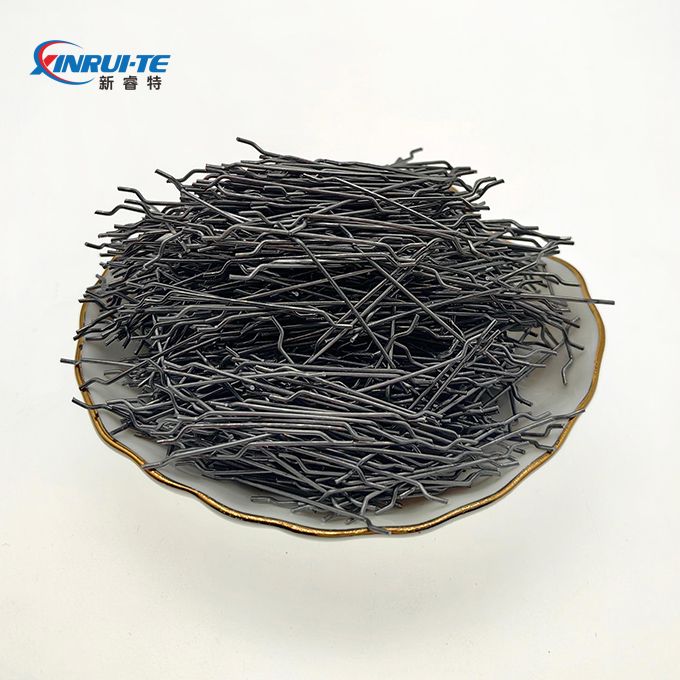

A: No. Unlike stiff steel fibers that can cause significant wear and tear on pump hoses and internal pipes, flexible synthetic fibers flow easily through the system. They actively reduce overall mechanical wear on the pumping infrastructure.
In the construction and civil engineering industries, synthetic fibers are increasingly being recognized for their ability to enhance the performance of concrete and other construction materials. These fibers, made from synthetic materials such as polypropylene, polyethylene, nylon, and polyester, play a crucial role in improving the durability, strength, and overall quality of construction projects. Synthetic fibers are now being widely used in various applications, including roads, bridges, tunnels, and buildings, to provide additional support and resistance to cracking and other forms of damage.
By incorporating synthetic fibers into construction materials, engineers and architects can create structures that are not only more resilient but also more cost-effective and environmentally friendly. As the demand for sustainable and high-performance construction solutions continues to grow, the use of synthetic fibers is expected to become even more prevalent in the coming years. With their numerous benefits and versatility, synthetic fibers are poised to play a key role in the future of construction and civil engineering.
Macro synthetic fiber is a type of reinforcement used in concrete and other construction materials to enhance their performance and durability. These fibers are made from synthetic materials such as polypropylene, polyethylene, nylon, or polyester and have a larger diameter than traditional micro synthetic fibers, typically ranging from 0.3 mm to 1.0 mm.
Macro synthetic fibers are designed to improve the tensile strength and toughness of concrete by reducing the formation and propagation of cracks. They work by distributing the load applied to the concrete, thereby reducing the stress on individual particles and preventing them from breaking apart. This results in a more uniform and stable structure that can withstand heavy loads and extreme environmental conditions.
In addition to improving the mechanical properties of concrete, macro synthetic fibers also offer several other benefits. They are easy to incorporate into the concrete mix, require no additional processing or treatment, and can be used in a wide range of applications, including pavements, slabs, foundations, and precast elements. Macro synthetic fibers are also environmentally friendly, as they can be recycled and do not contribute to the formation of microplastics.
Overall, macro synthetic fibers are a versatile and effective solution for enhancing the performance of concrete and other construction materials. Their ability to improve the tensile strength, toughness, and durability of concrete makes them an increasingly popular choice among engineers and architects looking to create high-performance and sustainable structures.
Macro synthetic fibers work by providing reinforcement to concrete and other construction materials, thereby improving their mechanical properties and overall performance. These fibers are designed to be randomly distributed throughout the concrete matrix, creating a three-dimensional network that helps to distribute the load and stress applied to the material.
When external forces are applied to the concrete, such as compression, tension, or bending, the macro synthetic fibers help to absorb and dissipate the energy, reducing the likelihood of cracking and other forms of damage. The fibers also help to control the size and spacing of cracks, preventing them from growing and propagating, which can lead to more serious structural issues.
In addition to providing reinforcement, macro synthetic fibers also help to improve the overall durability and longevity of the concrete. By reducing the formation of cracks and other defects, the fibers help to minimize the ingress of harmful substances, such as water, chemicals, and pollutants, which can weaken the concrete and compromise its structural integrity over time.
Overall, macro synthetic fibers work by enhancing the mechanical properties of concrete, providing reinforcement, improving durability, and creating a more stable and resilient structure. Their ability to improve the performance of concrete makes them a valuable addition to any construction project, helping to ensure that the final product meets the highest standards of quality and performance.
Using macro synthetic fibers in concrete and other construction materials offers a wide range of benefits that can significantly enhance the performance and durability of the final product. Some of the key advantages of using macro synthetic fibers include:
1. Improved tensile strength:Macro synthetic fibers help to improve the tensile strength of concrete by providing reinforcement that helps to distribute the load and stress applied to the material. This can help to reduce the formation of cracks and other forms of damage, resulting in a more stable and resilient structure.
2. Enhanced toughness:Macro synthetic fibers help to increase the toughness of concrete, making it more resistant to impact and abrasion. This can help to extend the lifespan of the material and reduce the need for maintenance and repairs.
3. Reduced cracking:Macro synthetic fibers help to control the size and spacing of cracks in concrete, preventing them from growing and propagating. This can help to minimize the risk of structural damage and ensure that the concrete maintains its strength and integrity over time.
4. Increased durability:Macro synthetic fibers help to improve the overall durability of concrete by reducing the ingress of harmful substances, such as water, chemicals, and pollutants. This can help to prevent corrosion, scaling, and other forms of degradation, ensuring that the concrete remains in good condition for years to come.
5. Environmentally friendly:Macro synthetic fibers are made from synthetic materials that can be recycled and reused, making them an environmentally friendly option for construction projects. They do not contribute to the formation of microplastics and can help to reduce the environmental impact of concrete production.
6. Cost-effective:Using macro synthetic fibers in concrete can help to reduce the overall cost of construction by minimizing the need for additional reinforcement, such as steel bars or mesh. They are easy to incorporate into the concrete mix and require no additional processing or treatment, making them a cost-effective solution for enhancing the performance of concrete.
Overall, the benefits of using macro synthetic fibers in concrete and other construction materials make them an increasingly popular choice among engineers and architects looking to create high-performance and sustainable structures. Their ability to improve the tensile strength, toughness, durability, and environmental performance of concrete makes them a valuable addition to any construction project.
Macro synthetic fibers are used in a wide range of applications in the construction and civil engineering industries, thanks to their ability to enhance the performance and durability of concrete and other construction materials. Some of the most common applications of macro synthetic fibers include:
1. Pavements and roads:Macro synthetic fibers are used in pavements and roads to improve their tensile strength, toughness, and durability. They help to reduce the formation of cracks and other forms of damage, ensuring that the pavement or road remains in good condition for years to come.
2. Slabs and foundations:Macro synthetic fibers are used in slabs and foundations to provide additional reinforcement and improve their performance. They help to reduce the formation of cracks and other forms of damage, ensuring that the slab or foundation can withstand heavy loads and extreme environmental conditions.
3. Precast elements:Macro synthetic fibers are used in precast elements, such as beams, columns, and walls, to improve their performance and durability. They help to reduce the formation of cracks and other forms of damage, ensuring that the precast element maintains its strength and integrity over time.
4. Tunnels and underground structures:Macro synthetic fibers are used in tunnels and underground structures to improve their performance and durability. They help to reduce the formation of cracks and other forms of damage, ensuring that the tunnel or underground structure can withstand the pressure and stress of the surrounding soil and rock.

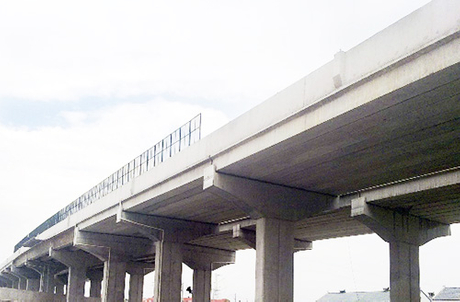

5. Bridges and overpasses:Macro synthetic fibers are used in bridges and overpasses to improve their performance and durability. They help to reduce the formation of cracks and other forms of damage, ensuring that the bridge or overpass can withstand heavy loads and extreme environmental conditions.
6. Industrial floors and slabs:Macro synthetic fibers are used in industrial floors and slabs to improve their performance and durability. They help to reduce the formation of cracks and other forms of damage, ensuring that the industrial floor or slab can withstand heavy loads, abrasion, and impact.
Overall, the versatility and effectiveness of macro synthetic fibers make them a valuable addition to a wide range of construction and civil engineering applications. Their ability to enhance the performance and durability of concrete and other construction materials makes them an increasingly popular choice among engineers and architects looking to create high-performance and sustainable structures.
Macro synthetic fibers are a valuable addition to the construction and civil engineering industries, offering numerous benefits for enhancing the performance and durability of concrete and other construction materials. By providing reinforcement, improving tensile strength and toughness, reducing cracking, and increasing durability, macro synthetic fibers help to create high-performance and sustainable structures that can withstand heavy loads, extreme environmental conditions, and the test of time.
As the demand for more resilient, cost-effective, and environmentally friendly construction solutions continues to grow, the use of macro synthetic fibers is expected to become even more prevalent in the coming years. With their versatility and effectiveness, macro synthetic fibers are poised to play a key role in the future of construction and civil engineering, helping to create structures that are not only more durable and sustainable but also more efficient and economical.
