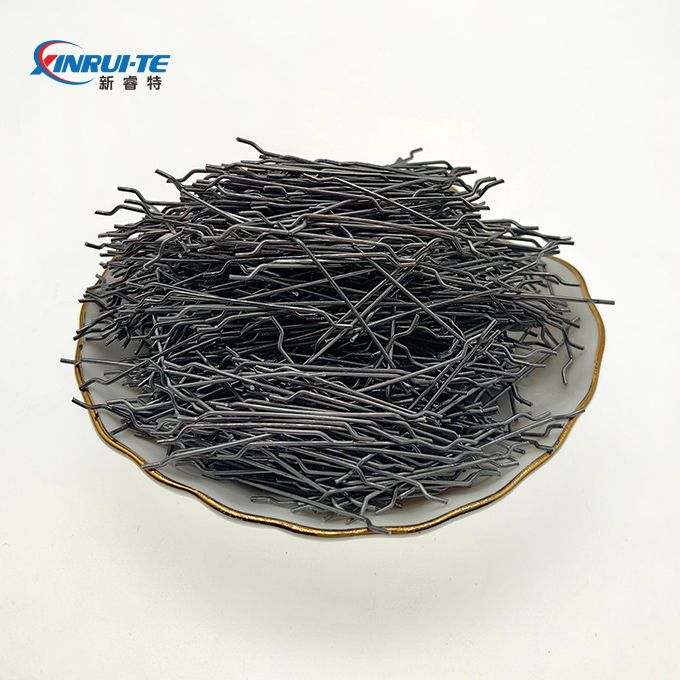

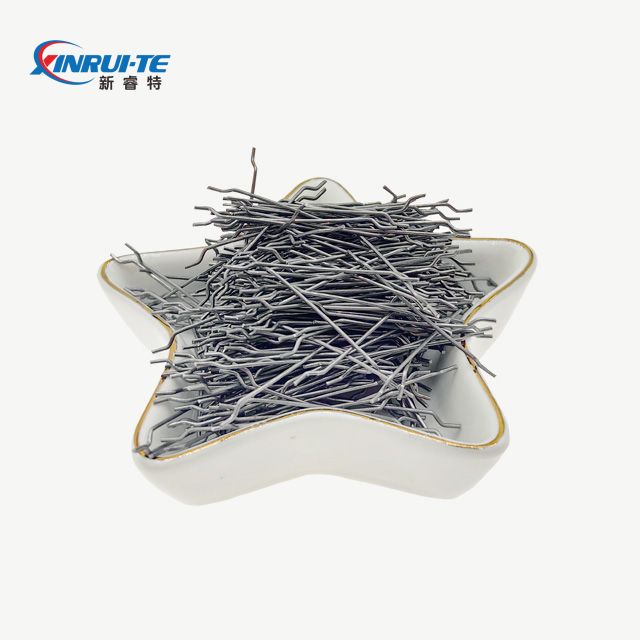

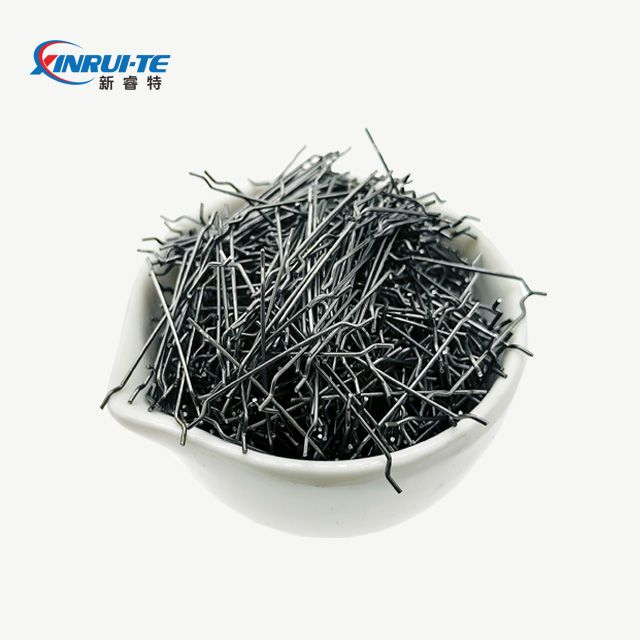

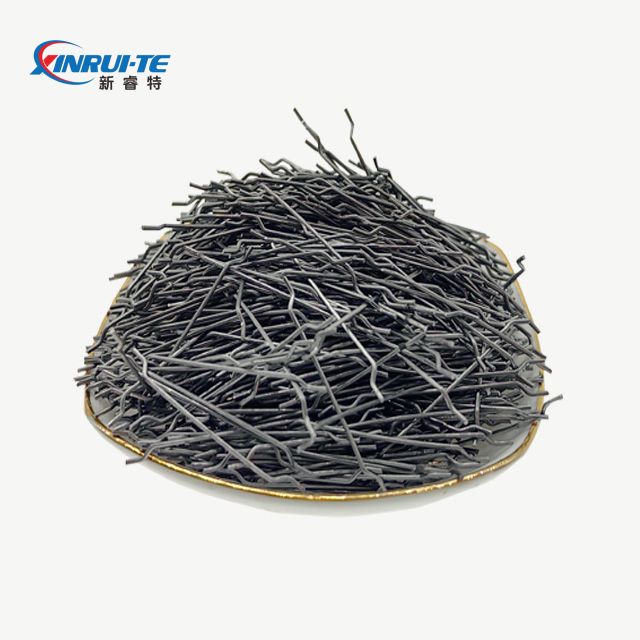

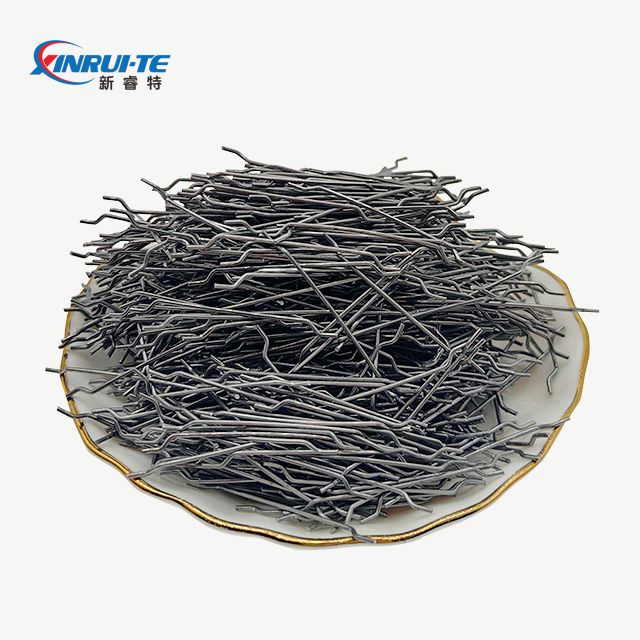

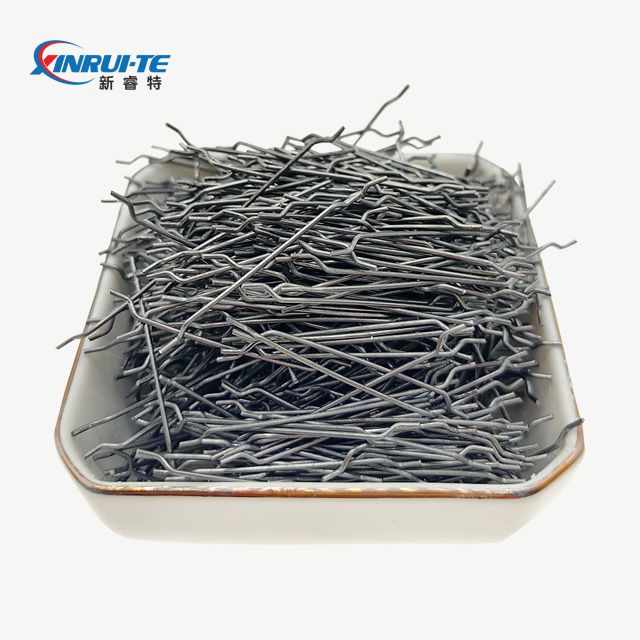

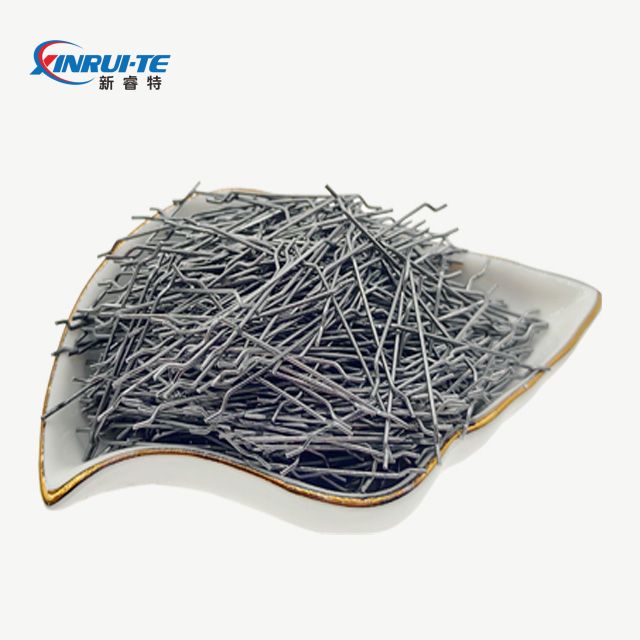

Factory Construction Monofilament Hooked Steel Fibres for Reinforcement Concrete

End-hook type steel wire fiber is a high-performance steel fiber that significantly enhances concrete's impact resistance, fatigue resistance, and impermeability. Characterized by its high tensile strength, excellent toughness, and cost-effectiveness, it is widely used as a substitute for row-arranged steel fibers. Compared with other types of steel fibers, it finds extensive application in engineering projects such as slopes, bridges, tunnels, airports, ports, and railway sleepers.
Length:
Diameter:
Tensile Strength:
Product name:
Availability:
Quantity:
  • XRT-MF

  • xinrui-te

                           Factory Construction Monofilament Hooked end Steel Fibres for Reinforcement Concrete


                                                                                                                                      -----XRT-MF

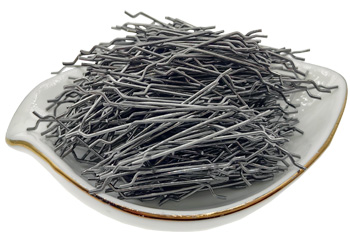

详情一

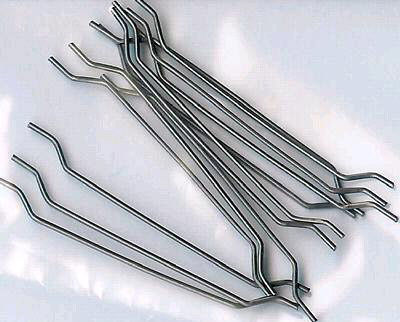

Hooked end Steel Fibres Brief introduction

End-hook type steel wire fiber is a high-performance steel fiber that significantly enhances concrete's impact resistance, fatigue resistance, and impermeability. Characterized by its high tensile strength, excellent toughness, and cost-effectiveness, it is widely used as a substitute for row-arranged steel fibers. Compared with other types of steel fibers, it finds extensive application in engineering projects such as slopes, bridges, tunnels, airports, ports, and railway sleepers.

Hooked end Steel Fibres features

Parameter Range Unit
         Length                     25–60                          mm
       Diameter                     0.5–0.9                          mm
Tensile Strength                   600–2000                           MPa

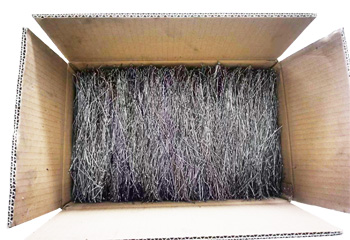

详情二

Hooked end Steel Fibres Application domain

ⅰ Highway & Bridge Engineering

      Highway surfaces, bridge deck overlays, box arch bridges, continuous box

       girders.

ⅱ Hydraulic & Dam Projects

      Hydraulic dams, underground power stations, hydraulic tunnel linings,

      components prone to water erosion and abrasion, sluice gates, gate slots,

      water conveyance channels.

ⅲ Railway Engineering
      Prestressed concrete railroad ties, double-block railway sleepers
ⅳ Marine & Harbor Infrastructure

      Corrosion protection for steel pipe piles, quayside facilities, subsea concrete structures.

ⅴ Tunnel & Underground Construction
      Hydraulic tunnel linings, mining tunnels, railway and highway tunnel linings.
ⅵ Pipeline Systems Engineering

       Centrifugally cast tubes, vibration-extruded pipes, pump casings, steel fiber-reinforced concrete pressure pipe.

Hooked end Steel Fibres advantages:

Item Name

Ordinary concrete at the same level


Steel fiber reinforced concrete


Growth rate

C30(RC)

C30(SFRC)

( % )

Tensile Strength

3.5MPa

5.39-7MPa

54-100

Compressive strength

31.2MPa

32.5-40MPa

4.4-28.2

Ultimate bending strength

5.5MPa

9.18-13.75MPa

67-520

Initial crack bending strength

4.88MPa

7-8Mpa

43-100

Initial crack strength

8.85N.m

23-53N.m

160-500

Impact fatigue strength

5.96/cm2

53.3-91/m2

8-15

Anti permeability grade

P4

P6~p12

0.5  ~ 2.0
