XRT-SSF
xinrui-te

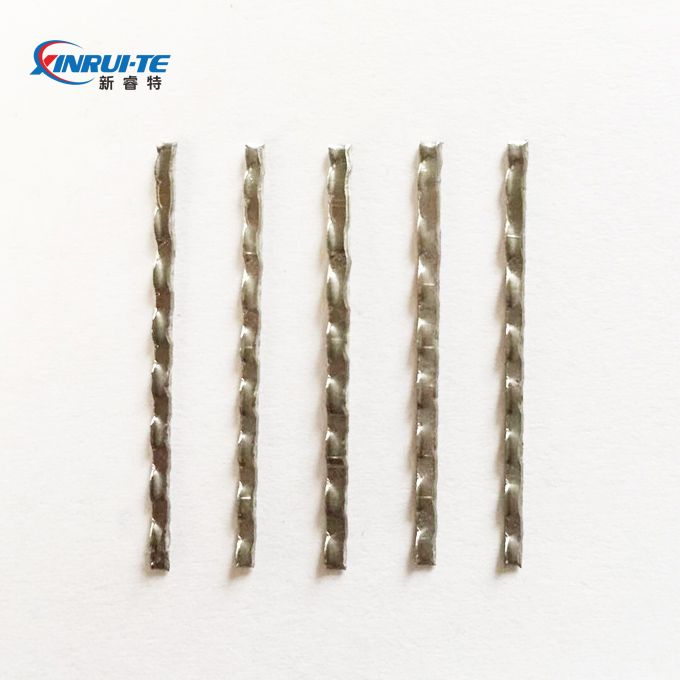

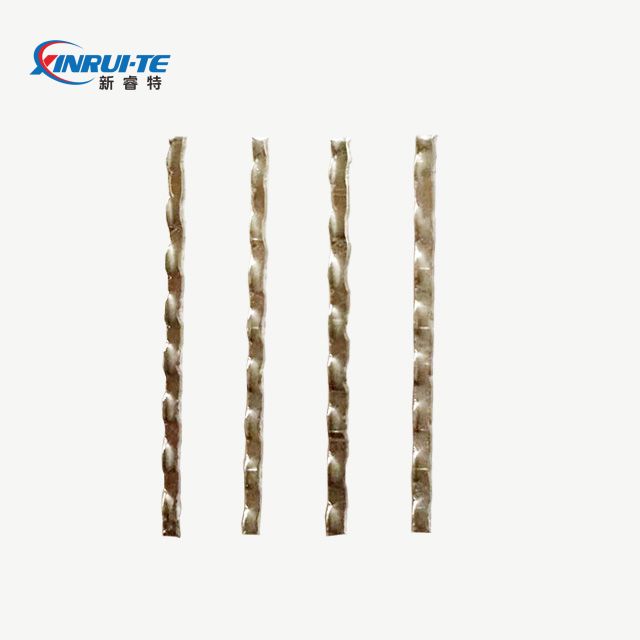

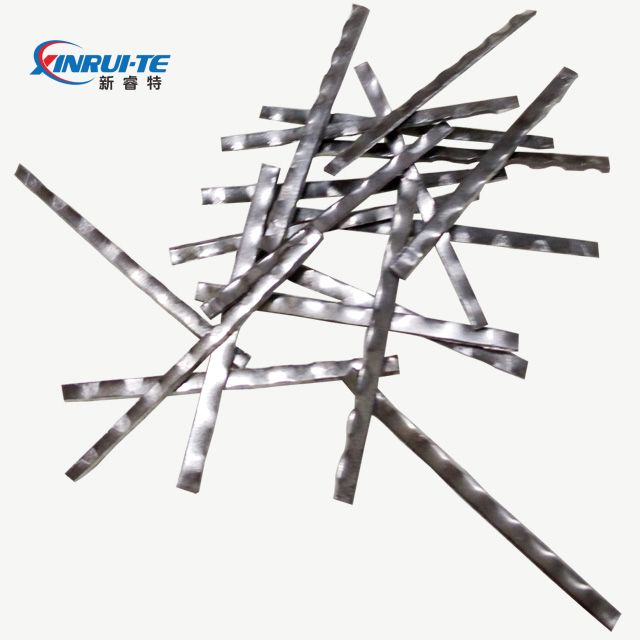

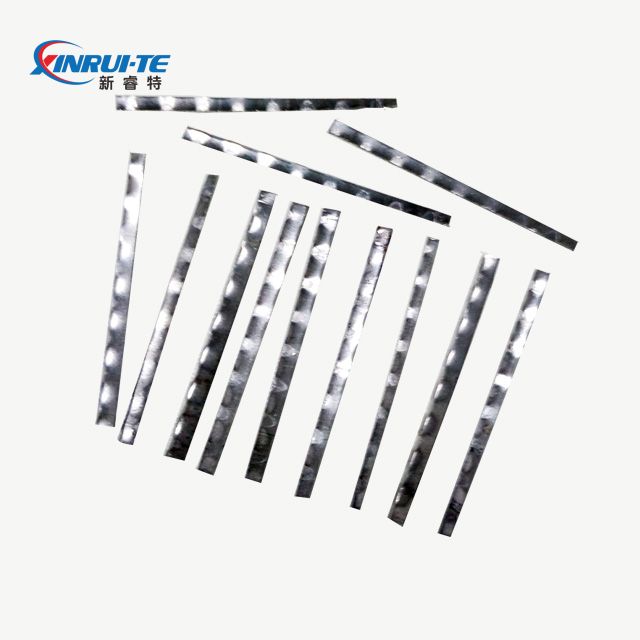

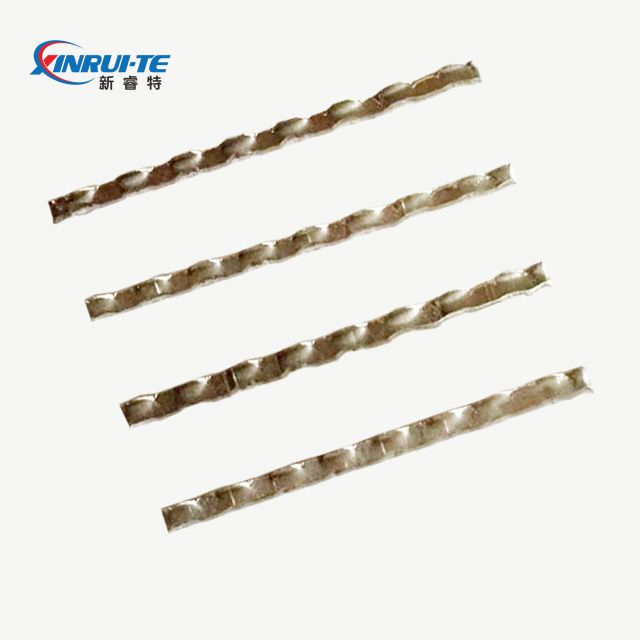

Shear-Type Steel Fibers for Concrete Reinforcement
------XRT-SSF
Product Overview:
Manufactured through a precision shearing process from cold-rolled steel strips, these high-performance fibers feature:
Enhanced tensile strength (≥500 MPa)
Optimized aspect ratios (L/D:20-100)
Superior concrete adhesion
Custom copper coating available
Technical Specifications:
Parameter | Specification |
---|---|
Dimensions (L×Φ) | 20-60 mm × 0.3-1.2 mm |
Aspect Ratio (L/D) | 20-100 |
Tensile Strength | ≥500 MPa |
Buckling Resistance | ≥3 test cycles |
Anchor Height | 1.5-2.0 mm surface profiling |
Density | 7.85 g/cm³ (0.00785 g/mm³) |
Key Features:
Cold-working process ensures dimensional consistency

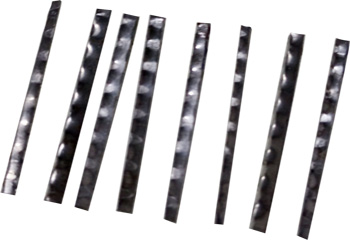

Mechanical anchoring through deformed surface geometry
450-600 fibers per kilogram (standard size calculation)
Compatible with concrete grades up to C80
Application Areas:
Application Areas | Specific Application Scenarios |
---|---|
Transportation Infrastructure | - Bridge deck overlays - Highway pavements - Railway sleepers & box girder systems - Tunnel linings (road/rail) |
Hydraulic Engineering | - Dam spillways & penstocks - Marine corrosion protection - Water treatment structures - Offshore platform components |
Industrial Construction | - Heavy-duty factory floors - Explosion-resistant facilities - Precast element reinforcement - Mining infrastructure |
Utility Systems | - Pressure pipe networks - Manhole covers & drainage systems - Cable trench reinforcement - Power plant structures |
Special Applications | - Seismic retrofitting - Military blast protection - Airport runways - Smart grid infrastructure |
Customization Options:
Length/Diameter: 20-60mm × 0.3-1.2mm
Surface: Plain or copper-coated
Packaging: 25kg water-resistant bags
Shear-Type Steel Fibers for Concrete Reinforcement
------XRT-SSF
Product Overview:
Manufactured through a precision shearing process from cold-rolled steel strips, these high-performance fibers feature:
Enhanced tensile strength (≥500 MPa)
Optimized aspect ratios (L/D:20-100)
Superior concrete adhesion
Custom copper coating available
Technical Specifications:
Parameter | Specification |
---|---|
Dimensions (L×Φ) | 20-60 mm × 0.3-1.2 mm |
Aspect Ratio (L/D) | 20-100 |
Tensile Strength | ≥500 MPa |
Buckling Resistance | ≥3 test cycles |
Anchor Height | 1.5-2.0 mm surface profiling |
Density | 7.85 g/cm³ (0.00785 g/mm³) |
Key Features:
Cold-working process ensures dimensional consistency
Mechanical anchoring through deformed surface geometry
450-600 fibers per kilogram (standard size calculation)
Compatible with concrete grades up to C80
Application Areas:
Application Areas | Specific Application Scenarios |
---|---|
Transportation Infrastructure | - Bridge deck overlays - Highway pavements - Railway sleepers & box girder systems - Tunnel linings (road/rail) |
Hydraulic Engineering | - Dam spillways & penstocks - Marine corrosion protection - Water treatment structures - Offshore platform components |
Industrial Construction | - Heavy-duty factory floors - Explosion-resistant facilities - Precast element reinforcement - Mining infrastructure |
Utility Systems | - Pressure pipe networks - Manhole covers & drainage systems - Cable trench reinforcement - Power plant structures |
Special Applications | - Seismic retrofitting - Military blast protection - Airport runways - Smart grid infrastructure |
Customization Options:
Length/Diameter: 20-60mm × 0.3-1.2mm
Surface: Plain or copper-coated
Packaging: 25kg water-resistant bags
