Views: 0 Author: Site Editor Publish Time: 2025-09-29 Origin: Site
Concrete contractors and specifying engineers face mounting operational challenges today. Unpredictable steel costs frequently squeeze tight project margins. Placing traditional welded wire mesh demands intensive manual labor and slows down pour schedules. Furthermore, long-term durability issues like rebar corrosion and plastic shrinkage cracking constantly threaten structural integrity. You need a reliable reinforcement alternative to overcome these hurdles. macro synthetic fibre-reinforced concrete serves as an engineered, three-dimensional solution. It actively improves residual strength while sharply reducing daily application costs. This advanced material absorbs dynamic stress evenly throughout the entire slab. This guide delivers a direct, technical evaluation of these polymer materials. You will discover exactly where they outperform traditional steel matrices. We will also outline their strict structural limitations clearly. Finally, we explain how you can properly specify and apply them for optimal project returns.
**3D vs. 2D Reinforcement:** Macro synthetic fibers replace conventional steel mesh by providing uniform, three-dimensional tensile capacity throughout the concrete matrix.
**Significant ROI:** Eliminates the labor, storage, and placement time associated with steel mats, while reducing shotcrete rebound waste from ~25% to under 5%.
**Performance Metrics:** Effective macro fibers focus on post-crack energy absorption (pull-out resistance) validated by ASTM C1609 third-party testing.
**Clear Limitations:** Synthetic fibers are not a 1:1 replacement for primary structural steel (per Eurocodes), are susceptible to long-term creep, and melt at 150–160°C.
**Contractor Considerations:** Adding **concrete fibers** reduces apparent slump; this requires superplasticizers, not additional water, to maintain workability.
Procuring the correct material requires a clear understanding of technical definitions. Specifiers often confuse different fiber types, leading to critical structural failures. You must classify fibers correctly to ensure the material matches your structural intent. The industry relies on ASTM C1116 Type III standards to categorize these synthetic additions.
Micro synthetic fibers feature a diameter smaller than 0.3mm. They typically measure between 12 and 19mm in length. Contractors use them strictly to mitigate early-age plastic shrinkage. They also provide excellent freeze-thaw protection in harsh climates. However, micro fibers offer zero structural support. They possess no post-crack load-bearing capacity. You cannot use them to replace steel reinforcement under any circumstances.
Conversely, macro synthetic fibers boast a diameter of 0.3mm or greater. Their length generally spans 38 to 50mm. Engineers specifically design these larger fibers to provide concrete with post-crack ductility. They deliver significant residual strength and exceptional impact resistance. When you use them correctly, they act as a legitimate alternative to secondary steel reinforcement.
Understanding their mechanism of action is crucial. Macro fibers do not necessarily prevent the first microscopic crack from forming. Concrete naturally shrinks and cracks as it cures. Instead, they bridge the crack immediately after it forms. They transfer the structural load across the fracture through a controlled pull-out mechanism. The polymer strains and absorbs energy rather than snapping instantly. This ductile behavior keeps the slab tightly bound and structurally sound under continued stress.
Evaluating the true cost and performance implications of reinforcement requires a hard look at daily operations. Traditional reinforcement methods introduce significant friction on the job site. Synthetic alternatives solve many of these logistical headaches while improving long-term safety.
Consider the realities of welded wire mesh (WWM). Mesh demands extensive labor and handling. Crews must unload sheets, tie them together, and elevate them on plastic chairs. You often need cranes to lift heavy bundles into place. Macro Synthetic Fibers eliminate this entirely. Batch plants mix them directly into the concrete truck. The material arrives at the site fully reinforced and ready to pour.
Positioning risks present another major failure point for wire mesh. During a pour, heavy-booted workers constantly trample the mesh. It frequently sinks to the bottom of the slab. Mesh sitting on the subgrade provides zero tensile reinforcement to the upper section of the concrete. Fibers guarantee perfect, three-dimensional distribution every single time.
When comparing synthetic options to traditional steel fibers, logistics heavily favor polymers. Synthetic alternatives are five to ten times lighter than steel equivalents. You achieve similar residual strength without hauling massive pallets of steel. Furthermore, synthetic materials provide absolute corrosion resistance. Steel fibers often leave unsightly rust spots on the finished surface. Synthetics eliminate surface rust entirely and resist aggressive chemical environments effortlessly.
Shotcrete efficiency highlights the starkest difference. When spraying steel-reinforced concrete onto vertical walls, heavy steel fibers bounce off. Contractors routinely experience around 25% rebound waste. The lighter, flexible nature of synthetic fibers allows them to embed instantly. Shotcrete rebound drops to less than 5%, saving immense amounts of wasted material.
Trust in engineering requires complete transparency. We must demonstrate objectivity by clearly defining where this reinforcement excels and where it introduces risk. No single material solves every structural problem.
You will find the highest return on investment in ground-supported and specialized applications. Slab-on-grade construction represents a massive opportunity. Warehouses, industrial flooring, and pavements benefit greatly. The fibers allow for extended joint spacing. They also provide incredibly high impact resistance against heavy forklift traffic. Shotcrete and mining operations represent another ideal use case. Synthetics offer superior contouring against uneven rock faces. They improve worker safety and drastically reduce abrasive wear on expensive pumping equipment. Finally, precast and insulated concrete form (ICF) wall systems benefit from accelerated production timelines. Stripping forms happens faster without waiting for complex steel tying.
However, you must respect strict engineering limitations. Do not use synthetic materials as a universal replacement for rebar. Current Eurocodes dictate clear structural load limits. Synthetic fibers cannot solely replace primary reinforcing steel in suspended slabs. You must never rely on them as the primary load-bearing element in critical structures like balconies or elevated beams.
Long-term creep presents another vital risk factor. Polymers naturally stretch over time when subjected to constant tension. We strongly warn against using them in applications requiring long-term, sustained heavy loads post-cracking. Furthermore, fire ratings demand careful attention. Synthetic polymers melt at temperatures between 150 and 160°C. You absolutely cannot use them where strict fire resistance is required to prevent immediate structural collapse.
Application Category | High-ROI Use Cases | Strict Limitations & Risks |
|---|---|---|
Slabs & Pavements | Warehouse floors, extended joint spacing, high forklift traffic. | Suspended slabs requiring primary load-bearing structural steel. |
Sprayed Concrete | Tunneling, mining, rock support, rapid application. | Areas needing absolute fire resistance to prevent structural collapse. |
Precast & Walls | ICF wall systems, non-structural architectural panels. | Applications subjected to heavy, sustained post-crack loads (creep risk). |
Transitioning to fiber reinforcement introduces new realities for your pouring crew. You must proactively address the immediate friction points contractors face during mixing and finishing. Managing workability stands out as the most critical challenge.
Adding high-aspect-ratio materials inherently decreases the visual slump of the mix. This creates a phenomenon known as the "slump illusion." The concrete looks stiff and dry in the truck chute. The physical fibers hold the matrix together tightly. However, once you apply vibration, the concrete flows normally. Contractors often panic and request more water to improve flow.
You must establish a strict rule on site: never add water to compensate for fiber-induced stiffness. Adding water destroys the water-cement ratio and weakens the final slab. Instead, you need a chemical solution. Specify mid-to-high range water reducers, commonly known as superplasticizers. You must follow ACI 544.3 guidelines to restore workability safely.
Surface finishing tactics also require minor adjustments. You want a smooth, clean surface free of protruding materials. Implement the following steps to ensure high-quality architectural finishes:
Vibrate Thoroughly: Use internal or external vibration to drive the aggregate and fibers down, bringing cement paste to the surface.
Single-Direction Brooming: When applying a slip-resistant finish, drag the broom in one continuous direction. This aligns the synthetic materials and minimizes surface disruption.
Post-Cure Torching: Address "hairy" surfaces directly. For high-end architectural finishes, a few fibers may protrude. Wait until the concrete is fully cured. You can quickly burn them off with a standard propane torch without damaging the slab.
By educating your crew on these specific techniques, placing concrete fibers becomes an efficient, seamless process.
Procurement and engineering teams need a reliable framework to evaluate materials. You must standardize bids to ensure you compare equivalent performance, not just price tags. Many buyers make the mistake of evaluating quotes based purely on "pounds per cubic yard."
You must look beyond basic dosage. A higher dosage of a poorly designed, smooth polymer performs terribly. Conversely, a lower dosage of an engineered, optimally shaped Macro Synthetic Fibre anchors deeply into the matrix and yields superior residual strength. You are buying structural performance, not sheer weight.
Always demand independent, third-party data from your suppliers. Do not accept in-house laboratory claims. Require verified testing certificates. Look specifically for ASTM C1609 test results. This beam flexural performance test dictates the material's actual residual strength (often denoted as $f_{e3}$ values). For shotcrete applications, demand ASTM C1550 test data. This round panel test measures total energy absorption in Joules.
Your next step requires professional collaboration. We strongly recommend engaging a licensed structural engineer. They should run a customized plastic analysis or a specific slab thickness calculation. Do this before transitioning any existing steel design to polymer reinforcement. Proper engineering ensures you maximize performance while staying safely within code limits.
Macro synthetic fibre-reinforced concrete serves as a highly effective, cost-saving solution for modern construction. When engineered correctly, it dramatically improves the durability of slabs, pavements, and shotcrete applications. It removes the intense manual labor of wire mesh, prevents corrosion, and speeds up project timelines. However, we must offer a final word of caution. You must always respect structural and thermal boundaries. Never use these materials to replace primary steel in suspended structures or areas requiring high fire resistance. We encourage you to consult with an engineered-materials specialist today. Request a specific mix design review or a comparative cost analysis for your next major project to see the benefits firsthand.
A: No. They can easily replace welded wire mesh and light secondary rebar in non-structural or ground-supported applications like pavements. However, they cannot replace primary structural steel in suspended slabs, load-bearing columns, or critical structural beams according to modern engineering codes.
A: Without proper finishing techniques, some strands may remain visible on the surface. However, specific troweling methods and single-direction brooming push them below the surface. For highly aesthetic applications, you can easily mitigate any protruding strands using a post-cure torching method.
A: Dosage rates vary heavily based on specific project load requirements and the geometric design of the fiber. Generally, applications require between 3.0 and 15 lbs/yd³. Because performance depends on the material's specific shape and tensile strength, custom structural engineering is always required.
A: No. Standard concrete pumps handle these mixtures perfectly. In fact, synthetic materials are soft and non-abrasive. They flow smoothly through hoses and often cause significantly less wear and tear on pump lines compared to harsh, rigid steel fibers.
Concrete technology has advanced rapidly in recent years, and one of the most significant innovations is the use of macro synthetic fibers. By incorporating macro synthetic fibre-reinforced concrete into modern projects, engineers and contractors can enhance durability, reduce cracking, and achieve better long-term performance. Xinrui-Te, a high-tech enterprise specializing in construction admixtures, provides high-quality polypropylene-based fibers designed for versatile applications. This guide offers step-by-step insights on design, mixing, placement, testing, and specification to help you confidently apply macro synthetic fibers in your next project.
Before specifying macro synthetic fibres in concrete, it is important to understand the design standards and guidelines that shape their use. Many international codes now recognize the effectiveness of synthetic fibres in applications where light reinforcement such as nominal bar or welded mesh was once standard. These standards outline when fibres can be used as an alternative, and where steel reinforcement remains mandatory.
Engineers should be aware that fibres are often used for controlling shrinkage cracking, enhancing impact resistance, and improving post-crack performance. In industrial slabs, pavements, shotcrete, and precast elements, macro fibres can partially or fully replace traditional mesh. However, for primary structural reinforcement, fibres usually serve as a complement rather than a complete replacement.
It is also valuable to consider project-specific conditions. For example, in regions with high seismic activity or heavy dynamic loads, design engineers may specify higher fibre dosages or additional reinforcement to meet safety margins. Consulting updated technical notes from professional associations helps ensure that projects remain compliant while benefiting from the latest research and proven practices.
The performance of macro synthetic fibre-reinforced concrete depends largely on the dosage rate. Dosage ranges vary by application:
Slabs-on-ground and pavements typically use 2–5 kg/m³ to control shrinkage and minimize surface cracking.
Shotcrete and tunnel linings may require 4–8 kg/m³ to withstand impact and maintain structural integrity.
Precast panels and walls often fall between 3–6 kg/m³ for crack control and durability improvements.
Selecting the right dosage requires balancing performance needs with cost considerations. Under-dosing may limit effectiveness, while excessive dosing can affect workability.
Macro fibres are compatible with most concrete admixtures, including water reducers, retarders, and defoamers. Care must be taken to ensure that admixture selection does not interfere with fibre dispersion. Proper mixing protocols are essential, as uniform distribution of fibres ensures the concrete achieves the intended crack resistance and toughness.

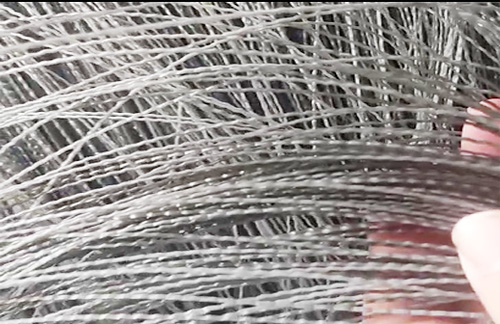

Xinrui-Te macro synthetic fibers, made from 100% virgin polypropylene, disperse evenly and bond effectively with concrete. The embossed surface design provides a superior mechanical bite, enhancing shrinkage resistance and long-term crack control.
The success of fibre-reinforced concrete lies not only in the design but also in the handling during placement.
Mixing Order: Fibres should be added slowly into the mixer to prevent balling or clumping. Continuous mixing ensures full dispersion.
Pumping: With proper mix adjustments, fibre-reinforced concrete can be pumped using conventional equipment. A well-graded mix helps maintain pumpability while minimizing blockages.
Finishing: Finishing should be carried out with the right timing and tools. Early troweling may cause fibres to pull out, so finishing should only begin after the bleed water has evaporated. For smoother surfaces, a power trowel or float finish can help embed exposed fibres.
By following these practices, contractors can achieve consistent results, whether working on slabs, tunnel linings, or precast elements. For larger projects, conducting trial mixes before the actual pour is recommended to fine-tune placement techniques and train crews on best practices.
To verify the quality of macro synthetic fibre-reinforced concrete, several tests are commonly used:
Visual inspection: Ensures fibres are evenly distributed without clumps.
Slump tests: Confirm workability is within acceptable ranges.
Flexural or tensile tests: Assess residual strength after cracking, where required by project specifications.
In addition, durability-focused tests, such as freeze-thaw resistance or abrasion resistance, may be specified for infrastructure projects exposed to harsh climates or heavy traffic.
On-site quality assurance should include sampling fresh concrete, monitoring fibre dosage, and maintaining mixing records. A checklist approach helps contractors and engineers ensure no step is overlooked.
Potential issues include fibre clumping, poor surface finishing, or uneven dispersion. These can be prevented with proper batching, thorough mixing, and correct placement techniques. If problems occur, remediation may involve re-batching mixes or surface refinishing. Early communication between engineers, suppliers, and contractors can reduce the risk of costly errors.
Macro synthetic fibres can significantly reduce both project time and cost compared to welded mesh or light reinforcement bars. With fibres mixed directly into the concrete, there is no need for on-site mesh cutting, tying, or placement. This streamlines scheduling and reduces labor costs.
While fibre material costs may seem higher initially, the savings in installation labor, reduced project delays, and improved long-term performance often outweigh the difference. Many contractors find that switching to fibres helps them deliver projects faster while maintaining quality.
Another advantage is reduced site congestion. Without mesh storage and handling, job sites are easier to manage, which improves safety and efficiency. These benefits make macro fibres not only a technical solution but also a practical choice for busy construction schedules.
Macro synthetic fibres are now widely used across different project types. Here are a few short examples:
Industrial Slab: A warehouse floor required crack control and load-bearing improvement. By using fibres instead of steel mesh, the contractor saved several days of installation time.
Precast Wall Panels: Fibres provided reinforcement against shrinkage cracking during curing, ensuring smooth delivery to the site.
Shotcrete Tunnel Lining: Macro fibres improved impact resistance and reduced rebound losses during spraying, cutting material waste.
For specification writing, sample language might include:
“Concrete shall incorporate macro synthetic fibres manufactured from virgin polypropylene, length 48–60 mm, dosage 4 kg/m³, supplied by Xinrui-Te Import & Export Co., Ltd. Fibres shall be certified under CE, SGS, and ISO standards.”
When specifying Xinrui-Te macro synthetic fibers, include the following details in your project documents:
Material: 100% virgin polypropylene.
Surface design: Embossed for enhanced bonding.Twisted for enhances the tensile strength,durability.Waved for increase the bulkiness, loft, and covering power of the yarn.
Fiber length: Standard lengths available, adaptable to project requirements.
Dosage: 2–8 kg/m³ depending on application.
Batch instructions: Add gradually during mixing for even distribution.
Certifications: CE, SGS, and ISO for quality assurance.
Xinrui-Te fibers have proven effective in solving common problems such as shrinkage cracks, brittleness, and low tensile strength in concrete. Their durability makes them particularly suitable for demanding environments, including coastal defense projects and docks. The combination of high breaking strength, excellent dispersion, and strong bonding capability ensures consistent performance across multiple construction applications.
Macro synthetic fibers have transformed how concrete is reinforced, offering a practical and reliable solution to minimize cracks, improve durability, and streamline construction workflows. By choosing Xinrui-Te’s polypropylene macro fibres, engineers and contractors gain access to products backed by international certification and years of export expertise. For tailored technical guidance or to request a sample, please contact us today to learn how macro synthetic fibre-reinforced concrete can enhance your next project.
Contact us for product specifications, technical consultation, or to request a PDF guide.
