Views: 0 Author: Site Editor Publish Time: 2026-07-28 Origin: Site
Shifting from traditional welded wire mesh to modern fiber-reinforced concrete requires precise material selection. You need to guarantee structural integrity while simultaneously managing strict project budgets. Many engineers face a critical challenge during this transition process. Selecting the wrong reinforcement material often leads to poor matrix anchorage and significant structural deficiencies. You might also experience reduced workability, commonly known as balling, or entirely fail to meet strict load-bearing specifications. Understanding the unique mechanical properties of various reinforcement options solves these pressing issues. This article provides a comprehensive technical evaluation framework to guide your decision-making. We categorize these materials by shape, manufacturing process, and critical performance metrics. You will learn how to align specific profiles with your exact application requirements. Engineering and procurement teams can use this detailed guide to confidently specify the right material for any heavy-duty concrete project.
Anchorage dictates performance: Shape deformations (like hooked ends or crimps) determine how well the fiber resists pull-out forces within the concrete matrix.
Aspect ratio and tensile strength balance: Higher aspect ratios improve bridging but increase the risk of mixing issues; standard applications typically require tensile strengths between 1,000 and 1,500 MPa.
Compliance is non-negotiable: Procurement shortlists must mandate conformity with standards such as ASTM A820 or EN 14889-1 to ensure predictable mechanical properties.
Application alignment: Industrial flooring, shotcrete, and precast elements each demand specific fiber profiles for optimal cost-to-performance ratios.
Traditional reinforcement methods demand intensive manual labor on every job site. Workers spend countless hours cutting, bending, and tying complex rebar grids. These manual processes naturally introduce significant placement errors. Over time, poorly placed rebar heavily compromises overall structural longevity. Adding Steel Fibers directly into the concrete mix permanently solves this problem. They provide a highly efficient isotropic reinforcement solution. This creates a multidirectional three-dimensional matrix within the poured slab. You drastically reduce site labor dependencies and accelerate tight construction timelines.
Micro-synthetic options primarily prevent early-stage plastic shrinkage cracks. They simply do not hold up under heavy dynamic loads or constant forklift traffic. Metallic elements deliver substantial post-cracking ductility. They effectively bridge microscopic cracks before they expand into dangerous macro-failures. This structural capacity absorbs significant impact energy over decades. You rely on them exclusively for rigorous load-bearing commercial applications.
A successful deployment always hinges on very specific measurable criteria. We outline these core success metrics below:
Residual Strength: You must achieve the specifically engineered residual flexural tensile strength.
Matrix Homogeneity: The mixture must ensure completely uniform distribution without structural settling.
Placement Efficiency: You cannot sacrifice the concrete's fundamental workability or pumping speeds.
Balancing high mechanical performance against the ease of site placement defines a truly optimized concrete matrix. Engineers meticulously calculate these variables before approving any pour.

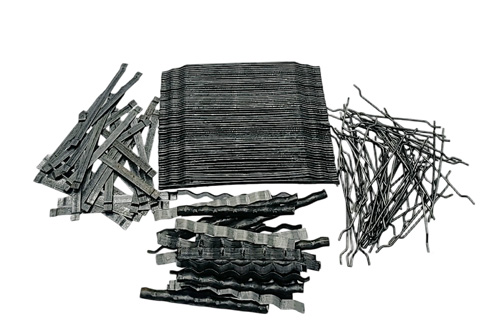

The physical shape directly dictates how effectively the material locks into the cured concrete. Engineers refer to this gripping action as the anchorage mechanism. We must expertly match the specific profile to the unique structural demands of your project.
This profile features distinct, aggressive bends at both extremities of the shaft. It represents the absolute industry standard for high-performance structural applications. The performance outcome relies entirely on exceptional pull-out resistance. The hook must physically straighten and deform to pull free from the cement paste. This intense mechanical deformation maximizes energy absorption during high-stress structural events. They are best suited for heavy-duty industrial warehouse floors. You will also frequently see them deployed in suspended slabs and structural precast elements.
These profiles appear wavy or highly corrugated along their entire longitudinal axis. This intelligent design provides continuous mechanical anchorage across the entire shaft length. Stress distributes evenly rather than focusing purely at the extreme tips. They deliver incredible sustained performance under sudden explosive shockwaves. They are best for advanced shotcrete applications and deep underground tunneling. Structural environments subject to dynamic impact or unpredictable blast loading benefit greatly from this specific shape.
This entry-level option features a perfectly smooth surface without any mechanical deformations. The performance outcome relies purely on microscopic chemical adhesion. Surface friction provides the only real resistance against heavy pull-out forces. Consequently, they offer significantly lower structural load-bearing capacity compared to deformed alternatives. They are best utilized for highly specialized micro-reinforcement tasks. You often find them successfully used in Ultra-High Performance Concrete (UHPC) mixes. We also specify them for non-structural aesthetic applications requiring exceptionally fine surface crack control.
These highly specialized elements feature flattened or expanded geometric heads at their extremities. The performance outcome guarantees extremely rigid, virtually immovable internal anchorage. The cement matrix locks onto the enlarged heads tightly during the curing phase. They remain somewhat less common in standard everyday commercial construction. However, they remain highly effective for specialized high-stress industrial zones. We mandate their use where absolute maximum pull-out resistance is strictly required by the engineering team.
Procurement teams must clearly understand how manufacturing processes alter material behavior. The rigorous ASTM A820 standard safely classifies these materials into four distinct categories. Each fabrication process yields vastly different levels of tensile strength and surface texture. Understanding these subtle variations guarantees you purchase the correct reinforcement grade.
Manufacturers actively draw this premium material from low-carbon or high-carbon steel wire. This meticulous process realigns the internal crystal structure of the metal. It consistently yields the highest available tensile strength on the market. It also provides unmatched performance consistency from one production batch to the next. We consider this the absolute industry standard for critical load-bearing applications. You rely on Type I Steel Fibers for achieving maximum structural reliability and predictable ductility.
Factories mechanically shear these profiles directly from large flat metal sheets. They feature a very distinct rectangular cross-section due to the stamping process. This high-volume manufacturing method keeps overall production costs relatively low. They offer a highly cost-effective alternative for specific moderate-load commercial applications. You use them when extreme baseline tensile strength is not strictly necessary for the slab.
Advanced facilities spin these specific elements directly from a rotating pool of molten metal. The rapid cooling process naturally forms a very unique crescent-shaped cross-section. This specialized thermal process fundamentally alters the heat properties of the final product. They become exceptionally resistant to extreme high temperatures and thermal shock. We frequently specify Type III variants for demanding refractory concrete applications inside industrial furnaces.
Producers literally shave these pieces directly from heavy metal blocks. This aggressive milling creates a very rough, highly textured outer surface area. The intentionally rough texture significantly enhances internal bond friction within the concrete paste. However, the resulting tensile strength across the batch can sometimes remain highly variable. You must carefully verify independent testing data before using them in critical structures.
ASTM A820 Type | Manufacturing Process | Key Characteristic | Primary Application |
|---|---|---|---|
Type I | Cold-Drawn Wire | Highest tensile strength and consistency | Critical load-bearing slabs and precast |
Type II | Cut Sheet | Rectangular cross-section | Moderate-load structural projects |
Type III | Melt-Extracted | Extreme heat resistance | Refractory concrete environments |
Type IV | Mill Cut | Rough surface texture | Applications requiring high bond friction |
Specifying the correct reinforcement requires strict adherence to technical evaluation metrics. You absolutely cannot base crucial structural decisions purely on raw material pricing. Hidden performance variables dramatically alter the final structural outcome of your project.
Evaluate all your potential options rigorously using these critical technical dimensions:
Aspect Ratio (Length / Diameter): This vital metric defines the exact geometric profile of the element. Standard structural ratios typically range anywhere from 40 to 80. A mathematically higher ratio means you get substantially more individual pieces per kilogram. This drastically improves the crack-bridging capabilities of the cured matrix. However, pushing a very high aspect ratio also significantly reduces wet concrete workability. You must perfectly balance structural engineering needs against actual site placement realities.
Tensile Strength Tiers: You must accurately align the mechanical strength class with your expected operational loads. Standard commercial applications typically require anywhere around 1,000 to 1,200 MPa. This baseline proves perfectly sufficient for most standard warehouse slabs on grade. High-performance industrial situations aggressively demand 1,500+ MPa ratings. You strictly need these extreme strengths for ultra-high-strength concrete matrices. The primary goal is to absolutely prevent reinforcement yielding under maximum peak stress.
Dosage Efficiency (Features-to-Outcomes): Look intelligently beyond the basic advertised price per kilogram. Evaluate the specific required dosage (kg/m³) needed to successfully achieve exact structural targets. Engineers often measure this core efficiency using the standard Re3 value metric. Cheaper raw alternatives frequently require much higher overall mixing dosages. This hidden requirement completely neutralizes any initial cost savings you thought you originally secured.
Certifications and Traceability: Strict quality control ultimately dictates public structural safety. You must aggressively demand an official CE marking (System 1) from the vendor. Always request comprehensive ASTM A820 compliance testing sheets before signing anything. These critical documents verify raw material origins and strict factory quality control standards. Never accept cheap, uncertified materials on a professional commercial job site.
Integrating high-quality Steel Fibers requires meticulous attention to these interconnected parameters. They fundamentally determine whether your slab behaves predictably under heavy daily stress.
Even the highest quality materials fail dramatically if contractors mix them improperly. Field implementation inherently carries highly specific mechanical risks. You must prepare your batch plant aggressively to handle these known physical challenges.
Adding thousands of thin metallic elements into wet concrete actively invites entanglement. Improper mixing sequences cause individual pieces to tangle together rapidly. Excessive aspect ratios also heavily contribute to this dangerous mechanical phenomenon. The construction industry refers to these tightly clustered masses as "hedgehogs." They create severe void spaces and highly dangerous weak points within the finished slab.
You effectively mitigate this major risk by deliberately specifying collated versions. Factories glue these specific bundles together using a rapid-dissolving water-soluble adhesive. The compact bundles disperse evenly only after they interact heavily inside the wet mix. You should also rigorously implement strict automated dosing machinery on site. Careful dosing timing at the batch plant stops clumping before it ever starts.
You must conduct a strict operational assumption check before any commercial pouring begins. Adding any rigid metallic reinforcement will noticeably decrease your overall concrete slump. Many inexperienced field contractors mistakenly add extra raw water to fix this slump loss. Relying solely on extra water severely compromises the ultimate concrete compressive strength.
Instead, you must intelligently adjust the core chemical mix design beforehand. High-performance superplasticizers must be fully factored into your upfront material cost calculations. Strategic high-range water reducers restore flowability perfectly without damaging the critical chemical curing process.
Frustrating aesthetic issues often plague poorly executed industrial concrete floors. Exposed metallic tips can easily rust when exposed on the final upper surface. This entirely ruins the pristine look of architectural or expensive diamond-polished floors.
You effectively mitigate this finishing risk through highly strategic troweling protocols. Proper dry-shake hardener toppings effectively conceal minor surface irregularities completely. You must also strictly insist on heavily optimized aggregate grading from your concrete supplier. Specialized angled troweling techniques gently push protruding elements deep below the upper paste layer.
Upgrading your primary reinforcement strategy requires a highly systematic, educated approach. You now understand exactly how shapes, manufacturing processes, and tensile strengths directly interact. Navigating this complex technical landscape effectively ensures a highly durable, incredibly long-lasting concrete matrix.
Apply strict shortlisting logic to your entire corporate procurement process. Do not blindly buy based solely on the cheapest price per kilogram. You must analytically buy based on the true functional cost per cubic meter. Your ultimate goal remains achieving the exact target performance at the highly optimal mathematical dosage.
Take a definitive actionable next step before finalizing any material supply contracts. Require your shortlisted suppliers to eagerly provide a fully documented mix design proposal. They must supply a dedicated structural engineering calculation specific to your chosen material type. Ensure they base this strict math on recognized industry standards like TR34 or ACI 360R. Validating these exact engineering metrics ultimately guarantees a highly successful deployment and structural longevity.
A: Yes, but only in highly specific construction applications. You can completely replace rebar in standard slabs on grade, shotcrete, and certain precast elements. However, suspended structural slabs handle complex tensile forces differently. These elevated structures almost always require a calculated hybrid approach. You will use metallic reinforcement directly in conjunction with localized traditional rebar.
A: Surface pieces may slightly oxidize and rust if directly exposed to external moisture. However, the critical structural integrity of the main reinforcement remains completely safe. The elements embedded deeply within the matrix are protected by the concrete's naturally high alkaline environment. This chemical alkalinity definitively prevents deep internal corrosion from occurring.
A: Engineering best practices dictate a highly specific mathematical ratio. The general rule of thumb focuses closely on your specific aggregate size. Your chosen length should always be at least 2.5 to 3 times larger than the maximum aggregate size within your concrete mix. This precise length ratio ensures proper mechanical anchorage and safely prevents premature matrix failure.
