Polycarboxylate Superplasticizer in Self Compacting Concrete

Polycarboxylate Superplasticizer is the key high-range water reducer that enables Self Compacting Concrete (SCC) to achieve exceptional fluidity, self-leveling capabilities, high slump retention, and robust segregation resistance without mechanical vibration by utilizing steric hindrance mechanism.

At a Glance

Why Polycarboxylate Superplasticizer Matters for SCC

Polycarboxylate Superplasticizer provides the decisive rheological control required for Self Compacting Concrete by imparting superior dispersion through steric hindrance while maintaining static segregation resistance.

Self Compacting Concrete is engineered to flow under its own weight, completely filling formwork and navigating dense rebar mesh without requiring external or internal mechanical compaction. Achieving this behavior necessitates a low water-binder ratio combined with exceptionally high deformability and viscosity control. Traditional naphthalene-based or melamine-based water reducers rely exclusively on electrostatic repulsion, which provides limited initial dispersion and rapid slump loss over time. Polycarboxylate superplasticizers feature a comb-like molecular polymer structure consisting of a main acrylic backbone with carboxylate groups and long polyoxyethylene side chains. When adsorbed onto cement grains, the anionic main chain binds to the positively charged hydration sites, while the flexible polyethylene glycol side chains extend into the aqueous phase, generating powerful steric hindrance that prevents particle agglomeration far more effectively than electrostatic charge alone.

In self-compacting mix designs, maintaining rheological stability over extended transit and placement periods is paramount. The incorporation of advanced synthetic polymer additives, such as high-performance Flake Polycarboxylate Superplasticizer water reducer for SCC, enables concrete technologists to reduce water-to-binder ratios down to 0.25–0.32 while preserving slump flow values exceeding 650 mm to 750 mm. The high water-reducing efficiency, often exceeding 30% to 35%, reduces capillary porosity, directly enhancing compressive strength, chemical resistance, and impermeability. Furthermore, the molecular design flexibility of polycarboxylate polymers allows precise tuning of side-chain density and backbone charge density, ensuring tailored dispersion behavior suited for varied cement mineralogies and supplementary cementitious materials such as fly ash and ground granulated blast-furnace slag.

1. Enhanced Deformability and Passing Ability: The steric hindrance mechanism reduces yield stress of the concrete paste to near zero, permitting effortlessly smooth passage through tight rebar clearances without blockages or aggregate separation.

2. Superior Slump Retention and Prolonged Workability: Unlike legacy admixtures, modern polycarboxylate architectures continuously regulate ion adsorption rates, maintaining target rheology for up to 120 minutes without inducing significant setting delays.

3. Reduced Bleeding and Segregation: Polycarboxylate superplasticizers optimize matrix cohesion, maintaining a uniform distribution of coarse aggregate throughout the matrix during transport, pouring, and setting stages.

Mechanism of Operation: The working principle of polycarboxylate superplasticizer in SCC centers on the dual action of electrostatic charge neutralization and physical steric hindrance. As cement particles hydrate, the carboxylate groups on the main chain anchor securely to hydration products like calcium silicate hydrate and ettringite. The extended hydrophilic side chains create a steric barrier with a hydrodynamic layer thickness of several nanometers. When two cement particles approach, the compression of these side chains creates an osmotic and entropic repulsive force that outweighs van der Waals attraction forces, ensuring a highly dispersed and stable paste suspensions.

Raw Materials and Experimental Design

The rigorous selection of monomer building blocks and controlled aqueous free-radical copolymerization forms the foundation for high-performance polycarboxylate superplasticizer synthesis tailored for SCC.

Developing an optimized polycarboxylate superplasticizer for self-compacting systems requires strict raw material selection and precise control over polymer architecture. Macromonomers such as Isopentenyl Polyoxyethylene Ether (TPEG) or Allyl Polyoxyethylene Ether (HPEG) with molecular weights ranging from 2400 to 5000 g/mol serve as the primary source of steric side chains. Acrylic Acid (AA), Maleic Anhydride (MA), or Methacrylic Acid (MAA) are copolymerized as small unsaturated monomers to supply the carboxylic acid main chain functional groups. Chain transfer agents such as Mercaptoacetic Acid or 3-Mercaptopropionic Acid are employed to rigorously control molecular weight distribution, preventing excessive polymer crosslinking or unreacted monomer residual fractions that could destabilize concrete setting behavior.

In experimental evaluation protocols for SCC, concrete mix proportions are carefully designed with cementitious contents typically ranging between 450 kg/m3 and 550 kg/m3, incorporating Portland Cement (CEM I 52.5N or 42.5R), silica fume, fly ash, and ground blast-furnace slag. Aggregate gradations are strictly managed, limiting maximum aggregate size to 16 mm or 20 mm with a high sand ratio (typically 45% to 50%) to ensure fluid cohesion. Water-to-binder ratios are fixed between 0.28 and 0.35. The synthesis process is conducted in batch reactors via aqueous free-radical polymerization initiated by persulfate-redox systems at controlled temperatures ranging from 45 degrees Celsius to 85 degrees Celsius, followed by neutralization with sodium hydroxide to achieve target pH values.

1. Macromonomer Selection: Utilizing high molecular weight TPEG/HPEG provides dense, extended polyoxyethylene branches, maximizing steric repulsion efficiency in high-binder matrices.

2. Acid-to-Ether Molar Ratio Adjustment: Fine-tuning the carboxylic acid to macromonomer molar ratio (typically 3.5:1 to 5.0:1) balances early initial dispersion against delayed adsorption kinetics.

3. Polymerization Kinetic Control: Precise dropwise addition of initiator and chain transfer agent maintains a narrow polydispersity index (PDI), optimizing viscosity reduction in dense pastes.

Experimental Testing Methodology: To validate the synthesized polycarboxylate superplasticizer formulations, comprehensive testing according to EN 12350 standards for self-compacting concrete is performed. Initial slump flow, T500 flow time, V-funnel flow time, L-box passing ratio, and sieve segregation resistance index are recorded directly after mixing and monitored at 30-minute intervals up to 120 minutes. Rheological parameters including dynamic yield stress and plastic viscosity are quantified using coaxial cylinder concrete rheometers to establish precise mathematical correlations between polymer structure and concrete rheology.

Effects of PCE Type on SCC Performance

Distinct molecular structures of polycarboxylate superplasticizer variants yield substantially different effects on fresh workability, slump retention, air entrainment, and mechanical strength development in SCC.

Polycarboxylate superplasticizers are broadly classified into three main operational categories based on their molecular synthesis design: High-Water-Reducing (Water-Reducing Type) PCE, Slump-Retaining (Sustained-Release Type) PCE, and Multi-Functional/Low-Release PCE. Water-reducing PCEs feature a higher density of carboxylate main-chain groups relative to side chains, leading to rapid initial adsorption onto cement grains, high immediate slump flow, and rapid early strength gain. However, these formulations can exhibit accelerated slump loss within 45 to 60 minutes in high-ambient-temperature environments due to rapid coverage of adsorption sites by early hydration products.

In contrast, slump-retaining PCE types utilize esterified or crosslinked molecular structures with a lower initial carboxyl density and higher side-chain density. Over time, alkaline hydrolysis in the cement pore solution slowly cleaves ester bonds, continuously releasing active carboxylate anchoring sites that adsorb onto freshly formed hydration surfaces. To manage workability under extreme elevated temperature conditions during extended transport, specialized formulations such as low release Polycarboxylate water reducer for hot weather are integrated into the concrete design. This slow-release mechanism maintains low paste yield stress and optimal V-funnel flow times for over two hours without requiring secondary retarding chemicals that could excessively delay compressive strength development.

1. Water-Reducing PCE Impact: Provides high early strength and maximum initial fluidity; ideal for precast self-compacting elements requiring rapid formwork removal.

2. Slump-Retaining PCE Impact: Ensures zero slump loss over extended periods; vital for ready-mix SCC applications involving long haul distances or complex pumping layouts.

3. Hybrid Polymer System Blending: Combining high-water-reducing and slump-retaining polymers at optimized ratios yields a balanced profile of immediate high flowability and sustained placement window.

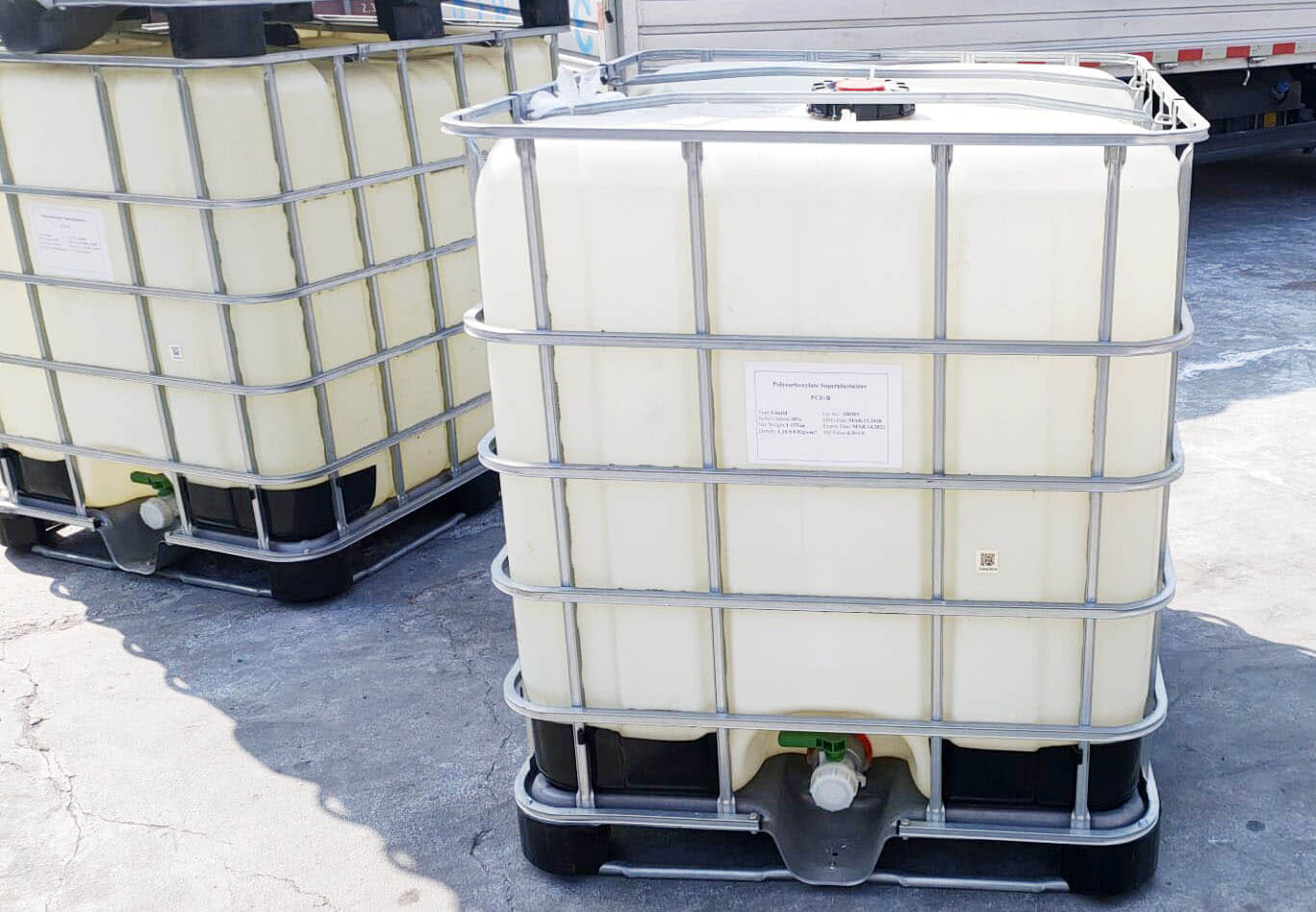

Maintenance and Application Tips: When storing liquid polycarboxylate superplasticizer products, bulk tanks must be maintained between 5 degrees Celsius and 35 degrees Celsius to prevent phase separation or structural degradation. For dry storage of Flake Polycarboxylate Superplasticizer water reducer for SCC materials, bags should be kept in cool, dry warehouses away from moisture to prevent caking. In ready-mix plants, dispensing pumps and flowmeters require routine flushing with water every two weeks to prevent polymer buildup, calibration drift, or dosage cross-contamination.

Optimal Dosage of Retarding Slump-Retaining PCE

Determining the optimal dosage of retarding slump-retaining polycarboxylate superplasticizer requires balancing fluidity targets against the risk of segregation, excessive retardancy, or surface bleeding.

The performance curve of polycarboxylate superplasticizer in self-compacting concrete exhibits a distinct saturation threshold. Below the optimal dosage, the concrete paste lacks sufficient dispersion, resulting in low slump flow, elevated T500 time, and poor passing ability through rebar grids. Once the saturation point is reached—typically between 0.8% and 1.5% by weight of total cementitious material for liquid formulations (or 0.18% to 0.35% for active solid content)—further additions yield minimal increases in fluidity. Exceeding the saturation limit, however, leads to severe over-dispersal, causing matrix segregation, bleeding, aggregate settlement, air void instability, and extended delays in initial and final setting times.

Ambient temperature significantly influences dosage dynamics. At elevated temperatures (above 30 degrees Celsius), the acceleration of early cement hydration consumes free water and active polymer molecules at an accelerated rate. Under such severe environmental conditions, concrete producers rely on specialized formulations, deploying low release Polycarboxylate water reducer for hot weather to maintain controlled release kinetics. This controlled release mitigates flash slump loss while stabilizing setting profiles. Laboratory dosage titration trials using actual jobsite materials (cement, aggregates, SCMs, and water) are critical for establishing the saturation plateau and identifying the safe operational dosage window under varying temperature scenarios.

1. Saturation Point Determination: Conduct marsh funnel or mini-slump tests on cement paste to locate the precise inflection point where flow time flattens out.

2. Sensitivity to Water Content: Polycarboxylate superplasticizers are highly sensitive to small variations in mix water; batching accuracy must be controlled within ±1%.

3. Extended Setting Mitigation: Dosage must be optimized to ensure initial set occurs within 8 to 14 hours, preventing structural delay in formwork removal schedules.

Troubleshooting Working Principles: If concrete exhibits segregation or surface bleeding at normal target dosages, it indicates an over-dispersed state or inadequate fines content in the aggregate matrix. Rather than reducing the polycarboxylate superplasticizer dosage—which may compromise passing ability—technologists should adjust the mix design by increasing fly ash or mineral powder content, adding a small dosage of Viscosity Modifying Agent (VMA), or slightly lowering total free water. This maintains the high steric repulsion of the polycarboxylate superplasticizer while raising paste plastic viscosity to stabilize the aggregate suspension.

Conclusion

Polycarboxylate superplasticizer technology remains an essential foundation of high-performance Self Compacting Concrete technology. Through engineered molecular structures featuring comb-like acrylic backbones and polyoxyethylene side chains, these synthetic polymers provide superior dispersion via steric hindrance, low water-binder ratio capability, and extended workability retention. By selecting the optimal PCE type—whether high-water-reducing, slump-retaining, or specialized low-release formulations for elevated temperatures—and rigorously determining dosage saturation points, concrete engineers can ensure self-compacting mixes achieve maximum fluidity, robust passing ability, and high long-term durability across challenging construction applications.
