XRT-ARG
xinrui-te
Material | AR-GLASSFIBRE | Moisture cotent(%) | <0.2 |
Zro2 | ≥16.7% | Size content(%) | 2.0 |
Filament（μm） | 15±1 | Breaking strength(N/Tex) | 0.45 |
Liner weight of strand (Tex） | 170±10 | Soft temperature(℃) | 860 |
Specific gravity(g/cm³） | 2.7 | Stiffness(mm) | ≥120 |
Chopped length(mm） | 12 | Tensile strength(GN/m2) | 1.68 |
Fire resistance | Incombustible | Elastic modulus(GN/m2) | 80 |

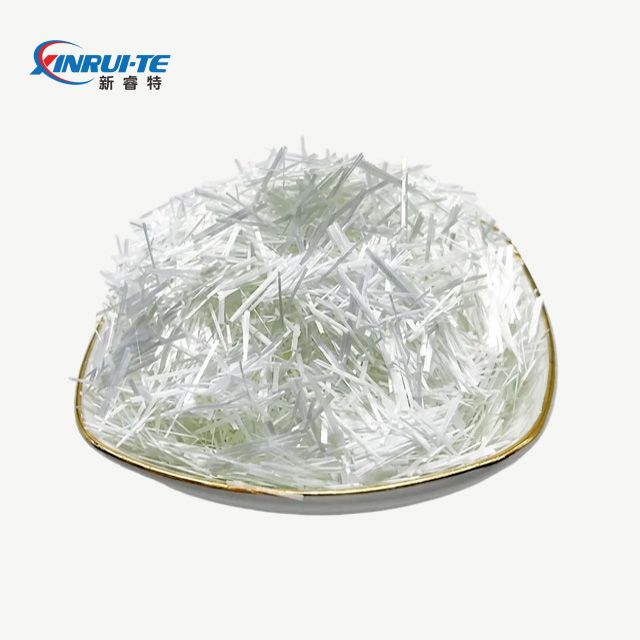

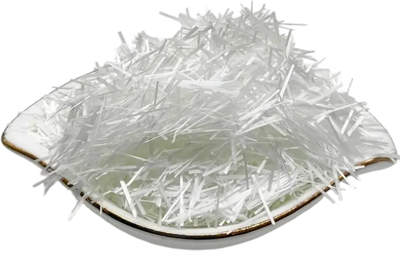

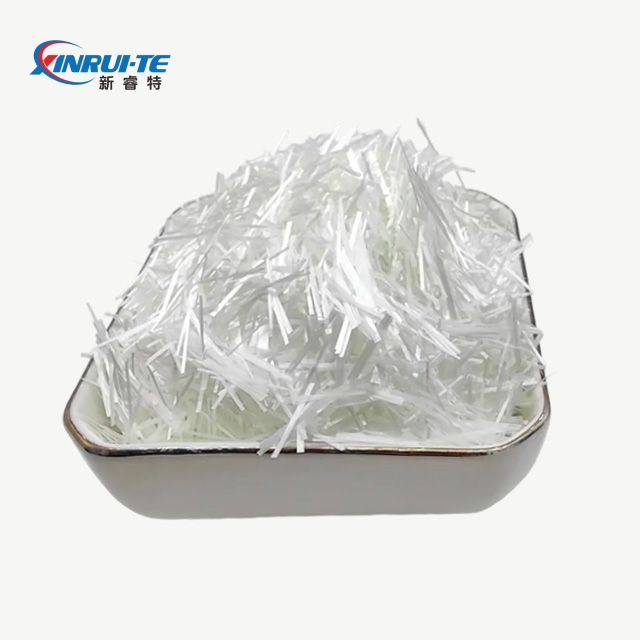

◎ Water-dispersed AR glass fiber chopped strand for concrete. The water-dispersible type can be added directly into
the mix on the shop floor without any special equipment — it disperses down to single filaments in binders like
calcium silicate slurry or cement paste.
◎Excellent alkali resistance and durability of Glassfiber. The high zirconia (zirconium oxide) content helps the fibers
resist corrosion in the highly alkaline cement environment, so GRC parts keep their strength and last a long time.
◎Keeps glass fiber intact during mixing. Low-twist yarns combined with a special wetting agent mean the fibers don't
break or clump up easily while stirring, so their structure stays whole, and the reinforcement stays consistent and
reliable.
◎Good stiffness. The fibers stay firm and don't tangle or knot easily in the mix, so they spread evenly and give the
parts steady crack resistance and flexural strength.
◎ In concrete applications: XRT-ARG chopped fibers can be added straight into dry-mix systems or concrete mixes and
will disperse evenly without special equipment. They stay intact during mixing and provide effective reinforcement
at low dosages, helping reduce early shrinkage cracks and improving crack resistance, impact resistance, and overall
durability in precast concrete, cement mortars, and dry-mix plasters.
◎ For GRC parts: The cement-and-AR Glass fiber mix is poured or pumped into molds, much like other precast
production methods. The mix is compacted by vibration or with added components, left in the mold to cure, and
demolded the next day. The premix process simplifies mold prep and demolding.
Packaging & storage

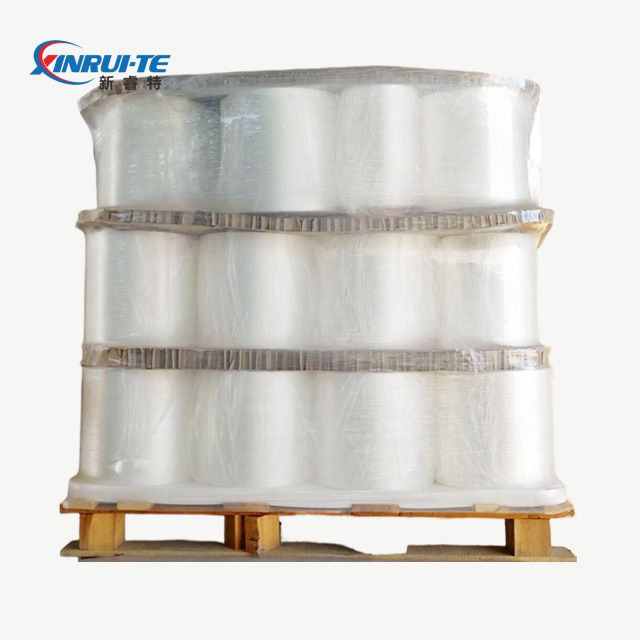

◎ Packed in 20 kgs bags. 20pallets/18tons/20’gp container.
◎ AR glass fiber pallets should be kept dry and left in their original packaging. We recommend single-layer stacking.
Store at 15–35°C with relative humidity between 35% and 65%. If the storage temperature drops below 15°C, let the
pallets sit in the workshop for 24 hours before use to prevent condensation.
