Views: 0 Author: Site Editor Publish Time: 2026-07-23 Origin: Site
Industrial environments demand robust infrastructure to withstand constant abuse from heavy machinery. A failing floor disrupts daily operations and severely compromises workplace safety. Managers often face unexpected downtime when concrete slabs crack or degrade prematurely. Traditional wire mesh reinforcement often falls short under extreme dynamic loads. Micro-cracks develop early, joints begin to spall, and routine structural headaches multiply rapidly. You need a reliable solution to ensure long-term physical integrity.
Selecting the correct concrete reinforcement directly dictates your floor’s lifespan and reliability. In this comprehensive guide, you will discover how specific reinforcement materials transform concrete performance. We will explore essential physical metrics and compare leading industry alternatives. You will learn practical selection criteria tailored strictly to heavy-duty applications. Ultimately, you will know exactly how to specify the optimal material to build resilient, lasting industrial floors.
Concrete handles compressive forces brilliantly. It supports massive static weights easily without crushing. However, it lacks natural tensile strength. It bends and cracks under stretching forces. Industrial machinery introduces severe dynamic loads into the concrete. Forklifts generate intense point stresses through their hard tires. These forces quickly exploit any structural weaknesses in the slab.
Traditional rebar or welded wire mesh attempts to bridge these gaps. Installers place them near the middle or bottom of the slab. They only engage structurally after large cracks form. This reactive approach limits overall durability. The concrete must fail slightly before the mesh starts working.
Modern engineering demands proactive solutions. Three-dimensional reinforcement changes the game entirely. Integrating Steel Fibers directly into the concrete matrix provides uniform strength. They sit everywhere throughout the slab. They intercept micro-cracks before they expand. This continuous internal network absorbs energy effectively. It enhances impact resistance and overall ductility.
Facility managers must address specific operational stresses during the design phase. You need a floor capable of surviving daily, localized abuse. Common industrial stresses include:
Dynamic heavy loads from moving automated guided vehicles.
Static point loads from towering, fully loaded storage racks.
Surface abrasion from dragged wooden pallets and dropped equipment.
Thermal shock in extreme manufacturing areas or cold storage units.
Understanding these specific forces guides your material selection accurately. You build a floor tailored to your exact operational reality.
Manufacturers engineer various element shapes to maximize anchorage. The material must grip the surrounding concrete tightly. If it pulls out too easily, the slab fails under tension. If it snaps completely, the material is too brittle. We look for a balanced mechanism. The element should slowly yield and pull out during a catastrophic overload. This slow pull-out absorbs massive amounts of kinetic energy.
Engineers categorize these profiles by their specific geometry. Each geometry interacts uniquely with the concrete paste.

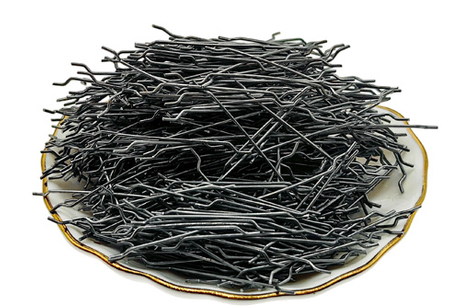

Hooked-end profiles: These dominate the industrial sector today. They provide superior mechanical anchorage. The ends deform slightly during a pull-out event. This deformation absorbs significant energy. It creates exceptional post-crack ductility.
Corrugated profiles: These wave continuously along their entire length. They offer consistent friction throughout the matrix. They suit specific specialty concrete mixes or precast applications.
Straight profiles: These rely purely on surface friction. They lack mechanical locks. Manufacturers rarely recommend them for modern heavy-duty slabs. They pull out too easily under high stress.

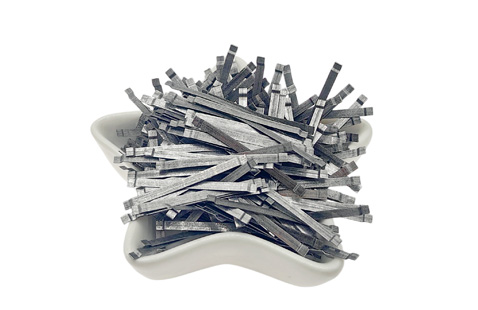

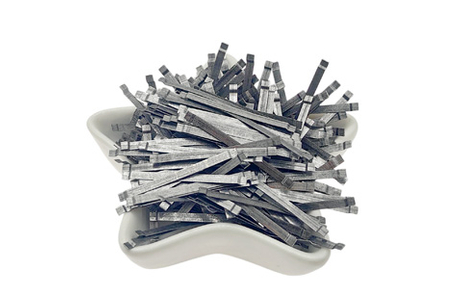

Flattened-end profiles: These feature stamped ends to create a paddle-like anchor. They perform better than straight versions but generally fall short of hooked-end performance in extreme scenarios.
You must match the profile to your concrete strength class. Higher compressive strength concrete requires stronger anchors. A mismatch leads to premature material snapping or inadequate grip.
You cannot select materials based on weight alone. Performance depends on strict geometric and metallurgical properties. Aspect ratio stands out as a critical metric. It equals the total length divided by the wire diameter. Higher aspect ratios generally deliver better structural performance. They cross more micro-cracks per kilogram of material added.
However, high aspect ratios complicate the mixing process. Long, thin elements tend to clump together. They form dry balls in the mixer. You must balance structural desires against practical workability limits. Manufacturers solve this using glued bundles. A water-soluble glue holds the strands together initially. The glue dissolves seamlessly during mixing. It releases individual strands evenly into the paste.
Tensile strength matters immensely for heavy applications. Standard elements offer around 1000 MPa. Heavy-duty applications require 1500 MPa or more. Ultra-high-performance concrete demands over 2000 MPa. You must ensure the wire does not snap before it pulls out of its anchor. The below table outlines how aspect ratios align with project types.
Aspect Ratio Range | Workability Level | Ideal Industrial Application | Typical Anchorage Type |
|---|---|---|---|
40 - 50 (Low) | Excellent (Easy mixing) | Light manufacturing, pedestrian zones | Straight or lightly corrugated |
50 - 65 (Medium) | Good (Standard procedures) | Standard warehouses, logistics centers | Single hooked-end |
65 - 85 (High) | Moderate (Requires glued bundles) | Heavy racking, AGV pathways, ports | Double or triple hooked-end |
Engineers often debate between synthetic macrofibers and metallic options. Both materials serve distinct purposes. Synthetic macrofibers gained significant popularity recently. They resist chemical corrosion completely. They handle plastic shrinkage cracking very well during the curing phase. Many contractors use them for exterior pavements or light commercial slabs.
However, heavy industrial floors demand maximum load capacity. Metallic elements deliver superior post-crack strength. They bridge wider joints effectively without stretching. They exhibit a high modulus of elasticity. Their stiffness closely matches the concrete itself. This prevents cracks from widening under load.
Synthetic plastics can slowly stretch over time under sustained loads. Engineers call this phenomenon "creep." Creep compromises joint stability in warehouse floors. When a forklift crosses a weakened joint, the concrete edges spall. You want rigid materials for structural floor systems. The comparison below highlights these critical differences.
Performance Dimension | Synthetic Macrofibers | Metallic Reinforcement |
|---|---|---|
Modulus of Elasticity | Low (Prone to stretching) | High (Rigid, matches concrete) |
Creep Resistance | Poor under sustained loads | Excellent under heavy static loads |
Joint Stability | Moderate (Acceptable for light loads) | Superior (Ideal for hard forklift tires) |
Corrosion Resistance | Absolute | Relies on concrete alkalinity |
Every industrial facility presents unique structural challenges. You cannot use a generic specification for every building. A logistics hub operates differently than a heavy manufacturing plant. We tailor the concrete mix and reinforcement strategy to match these daily operations.
Warehouses require exceptional joint stability above all else. Forklifts cross the same joints hundreds of times daily. Weak joints spall quickly under hard polyurethane tires. You need high-dosage Steel Fibers to lock those joints tight. They transfer the load seamlessly from one slab panel to the next. This prevents differential deflection.
Manufacturing plants deal with intense mechanical vibrations. Stamping machines and heavy presses send constant shockwaves through the floor. The enhanced ductility of a fully reinforced matrix absorbs this energy. It prevents fatigue cracking around machine foundations. We typically specify high-tensile, hooked-end profiles for these zones.
Cold storage facilities face severe thermal cycling. Temperatures drop drastically after construction. The concrete contracts significantly. This contraction creates massive internal tension. A dense, three-dimensional reinforcement network distributes these stresses evenly. It prevents large, uncontrolled shrinkage cracks from tearing the slab apart.
Most industrial floors utilize saw-cut joints. These joints induce controlled, straight-line cracking. Concrete naturally shrinks as it cures. We guide this shrinkage into neat cuts rather than random spiderweb cracks. The concrete purposefully cracks straight down below the saw cut.
The reinforcement must span this hidden crack. It holds the two adjacent slab panels together tightly. It provides essential aggregate interlock and load transfer. Without adequate load transfer, one panel deflects downwards under a forklift wheel. The uneven edge then chips and breaks under the next wheel pass.
Installation timing is critical here. Common mistakes include cutting too late or cutting too shallow. You must cut the joints within a few hours of the final trowel finish. The cut depth must equal one-third of the total slab thickness. Proper timing and depth guarantee the crack forms exactly where you want it. Your reinforcement then steps in to hold that newly formed joint secure.
Mixing demands careful, deliberate attention. You cannot simply dump raw material into the back of a truck. Hasty additions ruin the entire batch. Clumping occurs, leaving some areas weak and others unworkable. Proper distribution ensures consistent strength across the entire floor.
Follow these established steps for successful on-site mixing:
Batch the raw concrete normally at the ready-mix plant. Ensure the paste volume is sufficient.
Position the truck safely on site. Verify the initial slump is correct before adding anything.
Add the elements gradually to the rapidly rotating drum. Never dump bags all at once.
Use a conveyor belt or mechanical dispenser. This improves mixing speed and worker safety.
Mix at maximum drum speed for at least five minutes after the final addition.
Never add raw water to increase the slump. Extra water severely weakens the concrete surface. It increases shrinkage and causes the slab edges to curl upward. If you need better workability, use chemical superplasticizers instead. They improve flow without altering the critical water-to-cement ratio.
Finishing requires minor technique adjustments. Power trowels work perfectly on reinforced slabs. Float the surface carefully to push elements down below the surface layer. Keep the trowel blades relatively flat during the initial passes. High-angle blades might catch elements and pull them upward. A proper finish leaves a smooth, durable surface with no exposed strands.
Building a resilient industrial floor requires precise material selection and disciplined execution. Understanding the forces at play allows you to specify the exact reinforcement needed. You now have the knowledge to evaluate different profiles, performance metrics, and mixing procedures.
Take the following actionable steps for your next project:
Evaluate your facility load profiles carefully. Document maximum forklift weights and rack point loads.
Select hooked-end profiles for applications demanding maximum energy absorption and post-crack ductility.
Specify high tensile strength elements specifically for heavy-duty slabs handling severe dynamic stress.
Enforce strict mixing and saw-cutting protocols on site to ensure flawless installation.
Partner with experienced ready-mix providers who understand high-aspect-ratio mix designs.
A: Dosage typically ranges from 20 to 40 kilograms per cubic meter. High-rack warehouses might require up to 45 kilograms. Your structural engineer determines the exact amount based on load requirements, subgrade quality, and total slab thickness.
A: A few elements near the surface may show minor oxidation initially. However, the highly alkaline environment inside the concrete completely protects the embedded structural matrix from corrosion. Minor surface rust does not affect overall structural integrity.
A: Yes, in many slab-on-grade applications. A properly designed three-dimensional reinforced slab completely replaces welded wire mesh and light rebar. This substitution accelerates construction timelines significantly and simplifies the concrete placement process.
A: Use glued bundles for any high-aspect-ratio products. Introduce the material slowly into the mixer. Ensure the concrete slump is adequate before the addition. Always mix at high drum speed for several minutes to guarantee uniform distribution.
